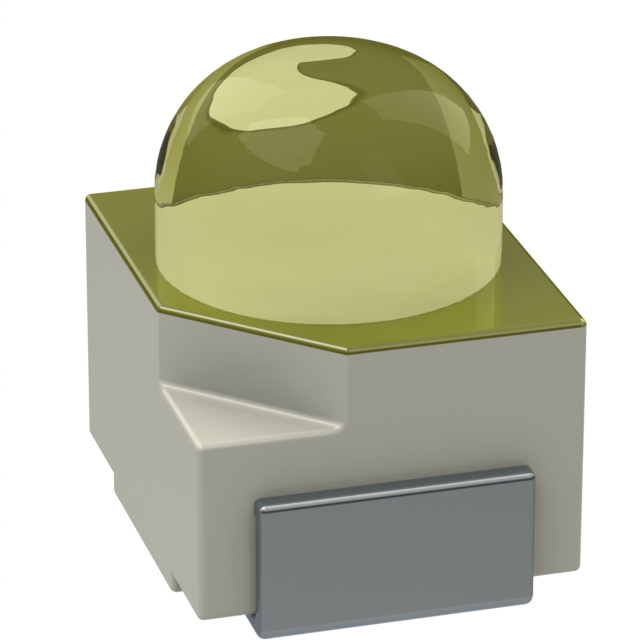

QBLP670D-IW-CW

$0.46

Description：LED COOL WHITE CLEAR 2PLCC SMD
Series：QBLP670
Mfr：QT Brightek (QTB)
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:7fdd30d486fc Category: LED Indication - Discrete Brand: QT Brightek (QTB)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

QBLP670D-IW-CW is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists QT Brightek (QTB). Its product description is LED COOL WHITE CLEAR 2PLCC SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for QBLP670D-IW-CW

Description：LED COOL WHITE CLEAR 2PLCC SMD
Series：QBLP670
Mfr：QT Brightek (QTB)
Package：Tape & Reel (TR),Cut Tape (CT)
Color：White, Cool
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：2600mcd
Lens Style：Round with Domed Top
Lens Size：2.40mm Dia
Voltage - Forward (Vf) (Typ)：3.1V
Current - Test：20mA
Viewing Angle：30°
Mounting Type：Surface Mount
Wavelength - Dominant：9000K
Wavelength - Peak：-
Features：-
Package / Case：2-PLCC
Supplier Device Package：2-PLCC
Size / Dimension：3.20mm L x 2.80mm W
Height (Max)：3.80mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for QBLP670D-IW-CW

QBLP670D-IW-CW

LED Indication - Discrete Overview

The QBLP670D-IW-CW is a surface-mount discrete LED from the QBLP670 series by QT Brightek. It emits cool white light with a correlated color temperature of 9000K. The component utilizes a 2-PLCC package with dimensions of 3.20mm length, 2.80mm width, and a maximum height of 2.10mm. Typical forward voltage is 3.1V at a test current of 20mA. The lens features a circular shape with a flat top, providing a 120-degree viewing angle.

LED Indication - Discrete Feature Summary

Emits cool white light characterized by a high color temperature of 9000K
Features a standard 2-PLCC surface mount package for compact integration
Provides a wide 120-degree viewing angle through a circular flat-top lens design

LED Indication - Discrete Applications

Indicator lights requiring high color temperature illumination
Backlighting applications utilizing SMD LED technology
Electronic status indicators in consumer devices

LED Indication - Discrete Procurement Notes

Verify the specific suffix 'D' against official manufacturer documentation to confirm if it denotes a distinct binning or variant compared to the standard QBLP670-IW-CW. Ensure compatibility with RoHS3 standards and MSL level 3 handling requirements during procurement and storage processes.

LED Indication - Discrete Selection Notes

Select this component when a cool white light output near 9000K is required within a standard 2-PLCC footprint. Consider the 3.1V forward voltage drop for circuit design. Verify availability as datasheet information may be limited compared to other variants in the QBLP670 series.

LED Indication - Discrete Part Context

This part belongs to the QBLP670 series of PLCC2 LEDs manufactured by QT Brightek. The series includes various color options such as warm white, neutral white, blue, green, and infrared. The QBLP670D-IW-CW specifically addresses the need for cool white illumination in a standardized surface-mount form factor common in modern electronics.
