QBLP673-IWK-CW80

LED Indication - Discrete Overview

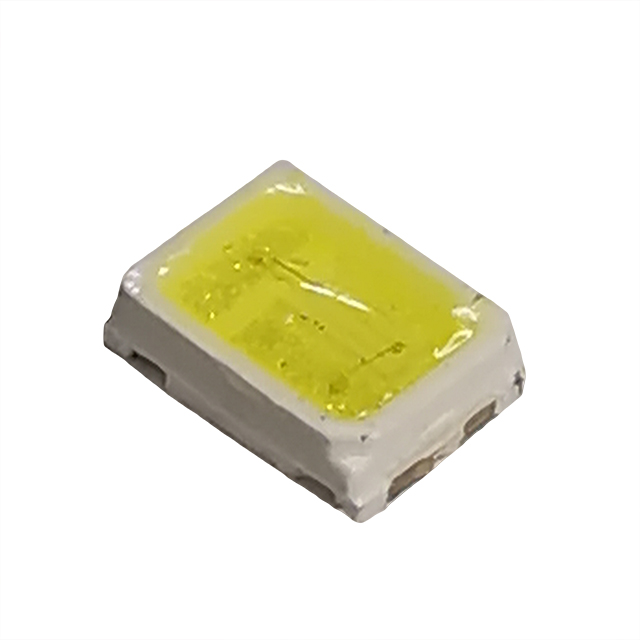

The QBLP673-IWK-CW80 is a discrete white LED from the QT Brightek QBLP673 series, designed for surface-mount technology. It features a compact PLCC-2 package with dimensions of 1.70mm x 1.30mm and a maximum height of 0.65mm. The component emits cool white light at a color temperature of 7800K. Key electrical parameters include a typical forward voltage of 2.9V and a test current of 60mA. It offers a wide viewing angle of 120 degrees.

LED Indication - Discrete Feature Summary

• Compact PLCC-2 surface mount package suitable for space-constrained designs
• Wide 120-degree viewing angle for broad illumination coverage
• Cool white emission profile optimized for specific lighting applications

LED Indication - Discrete Applications

• Backlighting for portable electronic devices
• Indicator lights in consumer electronics
• General illumination in compact lighting modules

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to ensure the correct color temperature and binning requirements are met. Confirm that the supplier provides valid RoHS compliance documentation. Check the moisture sensitivity level (MSL) rating to ensure proper storage and handling procedures are followed during assembly. Validate the lead-free status against project specifications.

LED Indication - Discrete Selection Notes

Select this component when a small form factor is required alongside high-intensity cool white output. The 60mA test current indicates suitability for applications needing brighter indication than standard low-current LEDs. Ensure the PCB footprint matches the 2-SMD flat lead configuration. Consider the 2.9V forward voltage drop for power supply design.

LED Indication - Discrete Part Context

This part belongs to the QBLP673 series, which utilizes a 2016 PLCC-2 package size. This series is distinct from the larger QBLP670 family, offering a more compact solution for modern miniaturized electronics. The manufacturer, QT Brightek, specializes in various LED indicator solutions.

LED Indication - Discrete Replacement Considerations

Direct replacements must match the 2016 PLCC-2 package and 7800K color temperature. Verify that substitute parts support the 60mA test current and similar forward voltage characteristics. Cross-reference mechanical dimensions to ensure compatibility with existing PCB footprints.
