QBLP676-IW-CW

LED Indication - Discrete Overview

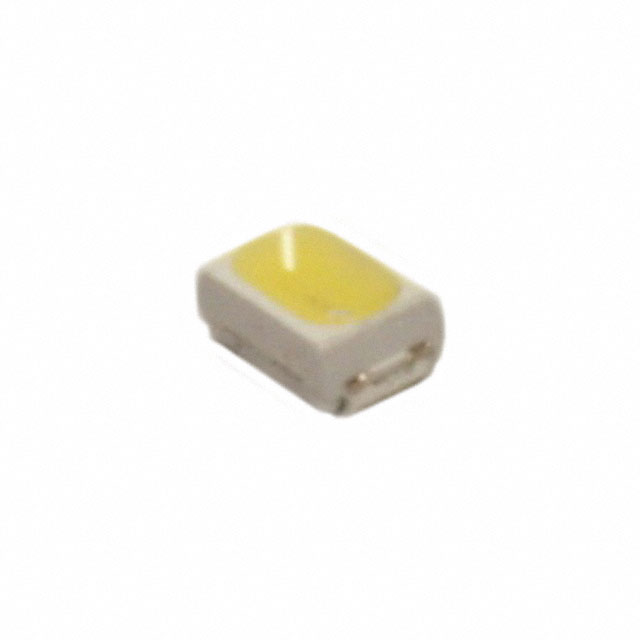

The QBLP676-IW-CW is a cool white surface-mount LED from the QBLP676 series by QT Brightek. It features a 2-SMD, J-lead package with dimensions of 3.00mm length and 2.00mm width. The component emits light at a primary wavelength of 4000K with a viewing angle of 120 degrees. Typical forward voltage is 3.2V at a test current of 20mA. The lens is yellow with a diffused transparency and an oval shape with a flat top. Maximum height is 1.30mm.

LED Indication - Discrete Feature Summary

• Emits cool white light with a 120-degree wide viewing angle for broad illumination coverage.
• Utilizes a compact 2-SMD J-lead surface mount package suitable for automated assembly.
• Features a yellow diffused lens to provide uniform light distribution.

LED Indication - Discrete Applications

• General indicator lighting in electronic devices
• Backlighting applications requiring neutral white tones
• Status indication on control panels

LED Indication - Discrete Procurement Notes

Verify the specific suffix IW-CW confirms the cool white color variant and 2-SMD package type against the official datasheet. Ensure compatibility with RoHS3 standards and MSL level 3 handling requirements during storage and soldering processes. Confirm lead configuration matches the J-lead specification for PCB footprint alignment.

LED Indication - Discrete Selection Notes

Select this component when a neutral cool white appearance is required for status indicators or low-intensity illumination. The 20mA test current and 3.2V forward voltage define the drive circuit requirements. Consider the 120-degree viewing angle for visibility needs and the 2-SMD form factor for space-constrained board layouts.

LED Indication - Discrete Part Context

This part belongs to the QBLP676 series of surface-mount LEDs manufactured by QT Brightek. The series offers various color options including blue, warm white, and cool white variants within the same physical package dimensions. The QBLP676-IW-CW specifically targets applications needing a standard cool white output in a small footprint.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other QBLP676 series variants such as QBLP676-IW-WW for warm white or QBLP676-IB for blue, provided the color difference is acceptable. Cross-brand replacements require matching the 2-SMD J-lead package, 3.00x2.00mm dimensions, and similar electrical characteristics like 3.2V Vf and 20mA current.
