QBLP677BD-RGB5

LED Indication - Discrete Overview

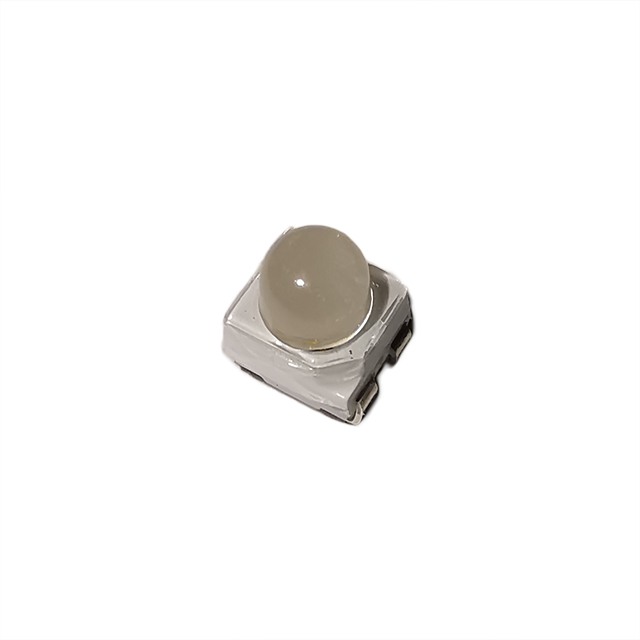

The QBLP677BD-RGB5 is a surface-mount RGB LED from QT Brightek, housed in a compact PLCC-4 package. It integrates red, green, and blue light sources for multi-color applications. The device features a common anode configuration with a clear lens. Electrical characteristics include a forward voltage of approximately 2V for the red channel and 3.1V for green and blue channels. It supports a test current of 20mA per color.

LED Indication - Discrete Feature Summary

• Integrates red, green, and blue wavelengths within a single PLCC-4 package to enable full-color mixing capabilities.
• Features a common anode electrical configuration suitable for standard digital control interfaces.
• Utilizes a clear lens design to maximize light transmission efficiency across all three primary colors.

LED Indication - Discrete Applications

• Space-constrained electronic indicator circuits
• Multi-color status signaling in consumer electronics
• Compact lighting modules requiring integrated RGB functionality

LED Indication - Discrete Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number with official QT Brightek documentation. Ensure that ordering suffixes do not imply functional changes unless explicitly stated in datasheets. Confirm RoHS compliance status and moisture sensitivity level requirements prior to procurement to align with assembly processes.

LED Indication - Discrete Selection Notes

Select this component when a compact form factor is required for RGB indication. The PLCC-4 package offers a balance between size and thermal performance. Consider the common anode structure for circuit design compatibility. Verify that the forward voltage requirements match the available drive voltages in the target application system.

LED Indication - Discrete Part Context

This component belongs to the QBLP677 series of RGB LEDs manufactured by QT Brightek. The series is designed for surface-mount technology applications. The PLCC-4 package provides a standardized footprint compatible with automated pick-and-place equipment. It serves as a discrete solution for color mixing in small form-factor devices.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Evaluate alternative RGB LEDs based on package dimensions, pinout configuration, and electrical specifications. Ensure any replacement maintains the common anode structure and similar forward voltage characteristics for direct integration.
