QLS6A-FKW-CNSNSF043

LED Indication - Discrete Overview

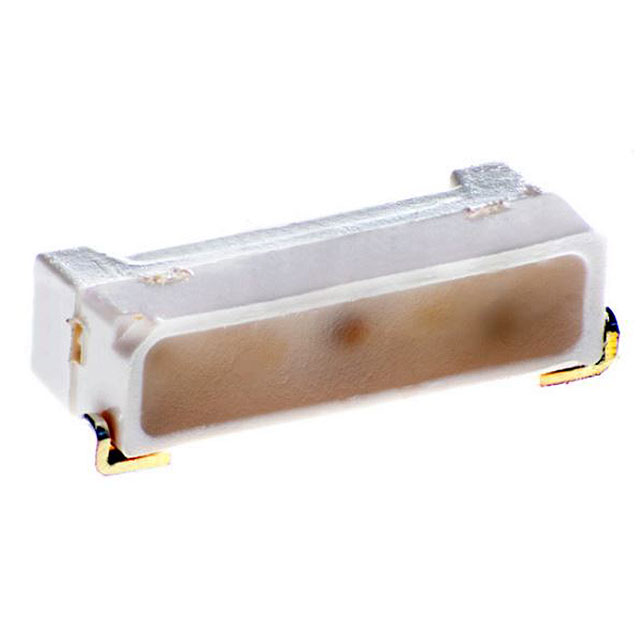

The Cree LED QLS6A-FKW-CNSNSF043 is a multi-color RGB surface-mount LED housed in a PLCC-6 package. It integrates red, green, and blue emitters with peak wavelengths of 624 nm, 535 nm, and 475 nm respectively. The component operates at a forward current of 20 mA per channel, with forward voltages of 2 V for red and 3.2 V for green and blue channels. Power ratings are 130 mW for red and 140 mW for green and blue. Light intensities reach 560 mcd (red), 1120 mcd (green), and 280 mcd (blue). The device features a square colorless lens, a 120-degree viewing angle, and operates within a temperature range of -40°C to +100°C.

LED Indication - Discrete Feature Summary

• Integrates three distinct primary color emitters into a single compact SMD package for full-color mixing capabilities.
• Features a square colorless lens design providing a wide 120-degree viewing angle for uniform light distribution.
• Constructed with high thermal tolerance components supporting operation up to +100°C for demanding environments.

LED Indication - Discrete Applications

• Architectural accent lighting requiring dynamic color changing
• Indoor decorative illumination systems
• Electronic display backlighting applications

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix against official Cree LED documentation to ensure correct binning and wavelength specifications. Confirm moisture sensitivity level handling requirements during storage and assembly. Check RoHS compliance status details directly from the manufacturer datasheet before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a small footprint RGB solution is required with high brightness output. Ensure the driving circuit supports independent control of three channels. Verify that the PCB layout accommodates the PLCC-6 package dimensions and thermal dissipation needs for continuous operation.

LED Indication - Discrete Part Context

This part belongs to the QLS6 series of multi-color LEDs from Cree LED. The series utilizes standard PLCC-6 packaging compatible with automated surface-mount assembly processes. It represents a compact solution for integrating multiple colors without separate discrete components.

LED Indication - Discrete FAQ

What is the peak wavelength for the red emitter?

The peak wavelength for the red emitter is 624 nm.

What is the maximum operating temperature?

The maximum operating temperature is +100°C.
