QLSP08RGB_B

Overview

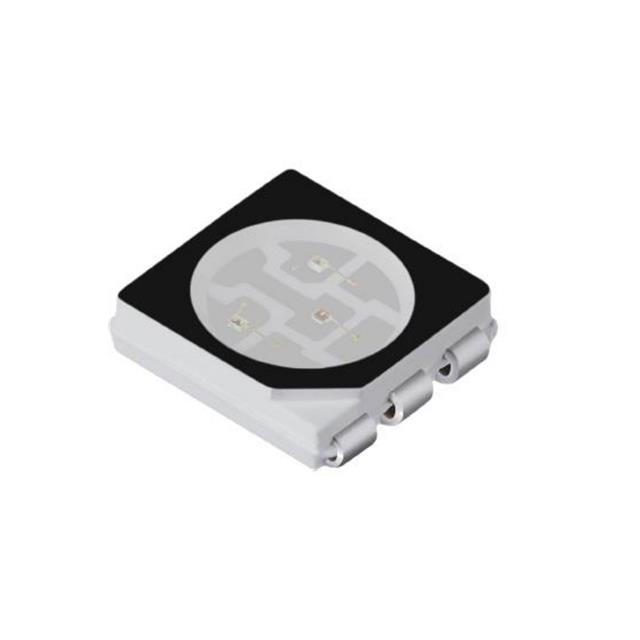

The QLSP08RGB_B is a surface-mount RGB LED component manufactured by Quelighting Corp. It utilizes a 5050 (2020 metric) package with a white diffused lens and black face color. The device integrates independent red, green, and blue channels emitting at peak wavelengths of 625nm, 523nm, and 465nm respectively. Electrical specifications include a forward voltage of 2.2V for the red channel and 3.2V for both green and blue channels. The product status is listed as active.

Feature Summary

• Integrates three independent light-emitting diodes within a single compact surface-mount package to produce full-color output.

Applications

• LED indication circuits requiring multi-color signaling
• Backlighting applications for electronic displays
• Decorative lighting modules

Procurement Notes

Verify the specific datasheet version from official Quelighting Corp channels or authorized distributors to confirm current electrical tolerances and thermal characteristics. Ensure compatibility with standard SMD reflow soldering profiles during integration. Cross-reference the part number QLSP08RGB_B against manufacturer catalogs to confirm availability and active status prior to procurement.

Selection Notes

Select this component when a compact RGB solution is required for space-constrained designs. The 5050 package size offers a balance between optical output and board area efficiency. Consider the distinct forward voltage requirements for each color channel when designing drive circuits to ensure proper current limiting and color mixing performance.

Part Context

This component belongs to the discrete LED indication category, specifically designed for surface-mount technology. It serves as a versatile light source for visual feedback in consumer electronics and industrial equipment. The RGB configuration allows for dynamic color generation without requiring multiple separate components.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer directly for qualified alternatives or cross-reference options based on pinout and electrical parameter matching.
