Product Detailed Parameters
- Description：0603 PKG, TOP VIEW, YELLOW GREEN
- Series：-
- Mfr：Quelighting Corp
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Yellow-Green
- Configuration：Independent
- Lens Color：-
- Lens Transparency：Clear
- Millicandela Rating：44.75mcd
- Lens Style：Rectangle with Flat Top
- Lens Size：1.10mm x 0.80mm
- Voltage - Forward (Vf) (Typ)：2.1V
- Current - Test：15mA
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：570nm
- Wavelength - Peak：569nm
- Features：-
- Package / Case：0603 (1608 Metric)
- Supplier Device Package：603
- Size / Dimension：1.60mm L x 0.80mm W
- Height (Max)：0.70mm
- Grade：-
- Qualification：-
Download product information
Overview

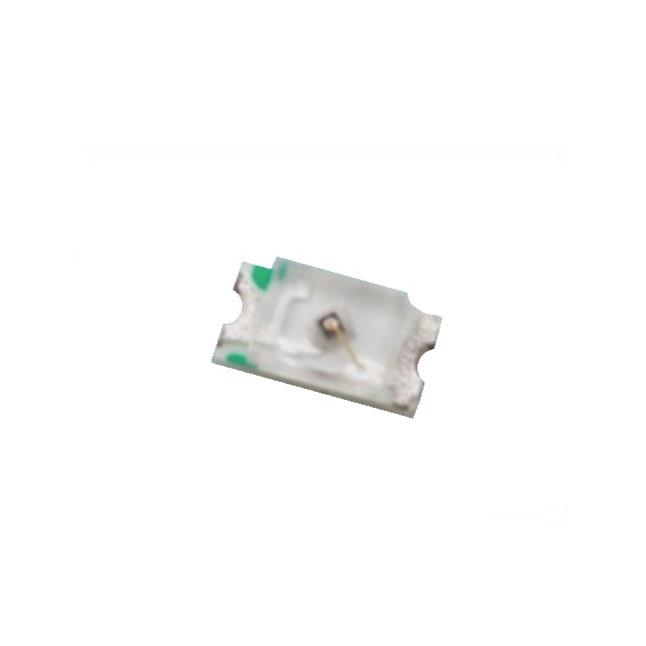

The QLSP1306YGP is a discrete yellow-green light-emitting diode manufactured by Quelighting Corp. It operates at a peak wavelength of 570nm and features a forward voltage of 2.1V. The component utilizes an 0603 (1608 metric) surface-mount package with a rectangular shape and flat top lens design. It provides a luminous intensity of 44.75mcd and employs transparent encapsulation material for the LED indicator application.
Feature Summary
- Yellow-green emission at 570nm wavelength
- Transparent rectangular flat-top lens design
- Surface-mount 0603 package configuration
Applications
- LED status indicators
- Discrete optoelectronic signaling
- Electronic equipment front panels
Procurement Notes
Verify the manufacturer part number QLSP1306YGP against official Quelighting Corp documentation to confirm specifications. Ensure the 0603 package dimensions and electrical parameters match project requirements before procurement. Cross-reference datasheets for accurate forward voltage and luminous intensity values.
Selection Notes
Select this component for applications requiring a compact yellow-green indicator. The 0603 footprint suits space-constrained designs. Confirm that the 2.1V forward voltage aligns with the driving circuit capabilities. Evaluate the 44.75mcd intensity against visibility needs in the target environment.
Part Context
This discrete LED belongs to Quelighting Corp's visible LED segment, which includes various optoelectronics such as SSL, UV, IR, and display LEDs. The company manufactures components across multiple market segments, providing status indicators and lighting solutions through diverse packaging options.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided source material. Consult official distributor channels or manufacturer catalogs for compatible alternatives if necessary.
