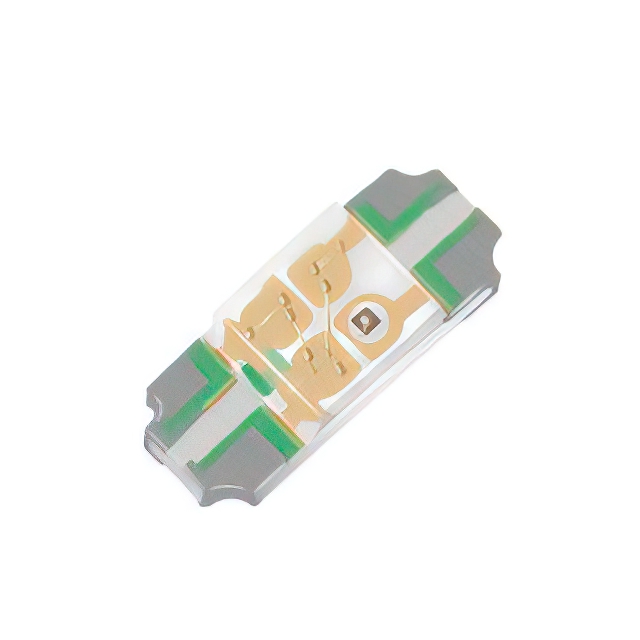

QLSP15RGB

$0.34

Description：LED RGB 4SMD BOTTOM ENT
Series：-
Mfr：Quelighting Corp
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:8ae3001a8981 Category: LED Indication - Discrete Brand: Quelighting Corp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED RGB 4SMD BOTTOM ENT
Series：-
Mfr：Quelighting Corp
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red, Green, Blue (RGB)
Configuration：Common Anode
Lens Color：-
Lens Transparency：-
Millicandela Rating：180mcd Red, 600mcd Green, 130mcd Blue
Lens Style：Square with Flat Top
Lens Size：1.40mm x 1.25mm
Voltage - Forward (Vf) (Typ)：2.15V Red, 3.1V Green, 3.1V Blue
Current - Test：20mA Red, 20mA Green, 20mA Blue
Viewing Angle：120°
Mounting Type：Surface Mount, Bottom Entry
Wavelength - Dominant：624nm Red, 525nm Green, 472nm Blue
Wavelength - Peak：632nm Red, 523nm Green, 470nm Blue
Features：-
Package / Case：4-SMD, No Lead
Supplier Device Package：4-SMD
Size / Dimension：3.20mm L x 1.25mm W
Height (Max)：1.20mm
Grade：-
Qualification：-

Download product information

QLSP15RGB

Overview

The QLSP15RGB is a surface-mount RGB LED indicator from Quelighting Corp, designed for discrete signal indication. It integrates Red, Green, and Blue emitters within a single 4-SMD package featuring a square lens with a flat top. The component measures 1.40mm by 1.25mm in lens size, with an overall dimension of 3.20mm length and a maximum height of 1.20mm. Electrical specifications include a forward voltage of 2.15V for the red channel and 3.1V for both green and blue channels. Dominant wavelengths are 624nm for red, 525nm for green, and 472nm for blue. The device operates at a test current of 20mA per color.

Feature Summary

Integrates red, green, and blue light sources into a compact reverse-mount surface-mount device
Features a square lens with a flat top design for uniform light emission
Compliant with RoHS standards and EU REACH regulations for environmental safety

Applications

Status indication on electronic circuit boards
Visual signaling in consumer electronics devices
Multi-color status display in industrial control panels

Procurement Notes

Verify that the ordered components match the specific 4-SMD package dimensions and reverse-mount configuration required by the PCB layout. Confirm compliance with RoHS and EU REACH standards if environmental regulations apply to the final assembly. Ensure automatic placement equipment compatibility when integrating this component into high-volume manufacturing processes.

Selection Notes

Select this component when space-constrained designs require multi-color indication capabilities within a small footprint. The reverse-mount configuration allows for lower profile assemblies compared to standard vertical LEDs. Consider the specific wavelength outputs and forward voltage requirements to ensure proper driver circuit design for each color channel.

Part Context

This part belongs to the discrete LED indication category, specifically designed for applications requiring compact, multi-color signaling. It serves as a solution for manufacturers needing to indicate multiple states using a single mounting location on printed circuit boards.
