QLSP23A

Overview

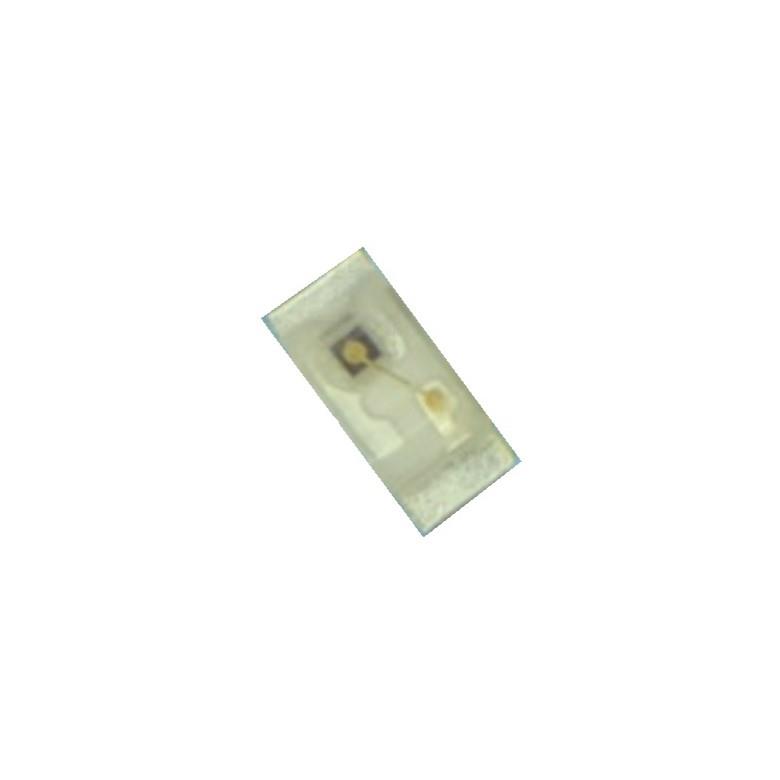

The QLSP23A is a surface-mount LED lamp manufactured by Quelighting Corp, designed for automated PC board assembly and space-sensitive applications. It features an amber lens with a flat top style and measures 0.65mm x 0.55mm. The component operates with a typical forward voltage of 2.1V at a test current of 20mA. It provides a viewing angle of 120 degrees and emits light at a wavelength of 605nm.

Feature Summary

• Miniature SMD configuration suitable for automated assembly
• Amber color output optimized for status indication

Applications

• Automated PC board assembly
• Space-sensitive electronic applications
• Status indicator lighting

Procurement Notes

Verify the manufacturer datasheet to confirm exact electrical characteristics and mechanical dimensions. Ensure compatibility with automated pick-and-place equipment due to the miniature package size. Check for specific ordering suffixes if different binning or packaging options are required for production.

Selection Notes

Select this component when space constraints require a 0402 footprint LED. Consider the 120-degree viewing angle for broad visibility needs. Verify that the 2.1V forward voltage aligns with the driving circuit design. Confirm the amber wavelength meets visual signaling requirements.

Part Context

This part belongs to Quelighting's SMD LED lamp series, which includes miniature sizes and special configurations. These components are engineered for high-volume manufacturing environments where precise placement and small form factors are critical for modern electronics assembly.

Replacement Considerations

Consult official distributor databases for direct substitutes. No confirmed public substitute part numbers are available in the provided documentation.
