QMQF574T25-2.0A-10.000135

Oscillators Overview

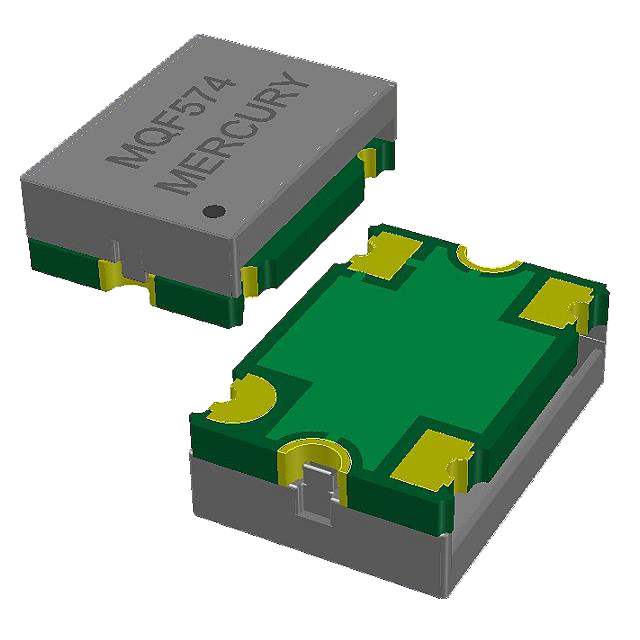

The QMQF574T25-2.0A-10.000135 is a QuikXO temperature-compensated crystal oscillator (TCXO) manufactured by Mercury Electronics Ind. Co. Ltd. It operates at a nominal frequency of 10.000135 MHz with a stability of ±2.0 ppm over the industrial temperature range of -40°C to +85°C. The device utilizes a CMOS output interface and requires a supply voltage of 2.5 V. It is housed in a compact 4-pad surface-mount package measuring 7.0 x 5.0 x 2.5 mm, designed for FR4 PCB integration.

Oscillators Feature Summary

• Temperature compensation ensures stable frequency performance across wide industrial temperature ranges.
• CMOS output interface provides digital signal compatibility for direct logic integration.
• Compact surface-mount form factor facilitates high-density circuit board design.

Oscillators Applications

• Telecommunications equipment requiring precise clock synchronization
• Portable electronic devices needing low-power timing sources
• Industrial control systems operating in variable thermal environments

Oscillators Procurement Notes

Verify component authenticity through authorized Mercury Electronics distributors or certified partners. Confirm that the specific suffix matches the required frequency and tolerance specifications. Ensure compliance with RoHS standards if environmental regulations apply to your manufacturing process. Request official datasheets to validate electrical characteristics against system requirements before finalizing orders.

Oscillators Selection Notes

Select this model when a 10.000135 MHz reference is necessary with tight ±2.0 ppm stability. The 2.5 V CMOS output suits low-voltage digital circuits. Consider the 4-SMD no-lead package for automated assembly processes. Evaluate thermal management needs given the -40°C to +85C operational range. Compare power consumption metrics against alternative oscillators if battery life is critical.

Oscillators Part Context

This component belongs to the QuikXO TCXO series from Mercury Electronics, which focuses on cost-effective, high-reliability timing solutions. The QMQF574T25 variant specifically targets applications demanding small footprints and robust performance. It complements other models in the family offering different frequencies and voltage levels while maintaining consistent packaging dimensions.

Oscillators Replacement Considerations

Direct substitutes must match the 10.000135 MHz frequency, ±2.0 ppm stability, and 2.5 V CMOS output. Verify pinout compatibility with the 4-pad SMD configuration. Cross-reference thermal specifications to ensure equivalent -40°C to +85C operation. Consult manufacturer cross-reference guides for approved alternatives with identical electrical parameters.

Oscillators FAQ

What is the output waveform type?

The QMQF574T25-2.0A-10.000135 produces a CMOS digital output waveform suitable for standard logic inputs.

Does the device support lead-free soldering?

Yes, the component is RoHS compliant and supports lead-free soldering processes as per industry standards.
