QPC2108

Overview

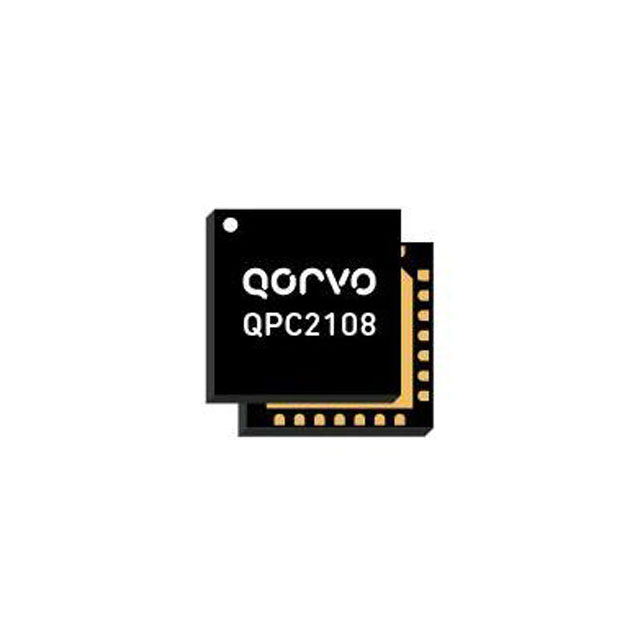

The Qorvo QPC2108 is a packaged 6-bit digital phase shifter fabricated on a high-performance 0.15 um GaAs pHEMT process. It operates over a frequency range of 2.5 to 4 GHz with bi-directional signal capability and 360° coverage, where the least significant bit (LSB) equals 5.625°. Key electrical parameters include an RMS phase error of less than 2.8° from 2.5–3.8 GHz and less than 5° from 3.9–4 GHz, alongside an RMS amplitude error under 0.4 dB. The device exhibits an insertion loss of 5 dB, return loss of 16 dB, input P0.1dB of 23 dBm, and input IP3 of 45 dBm. Switching speed is under 100 ns with control voltages of 0/+5 V. It is housed in a 6.0 x 6.0 x 0.79 mm QFN package.

Feature Summary

• Bi-directional 6-bit digital phase shifting with 360° total coverage
• High linearity performance characterized by 45 dBm input IP3
• Fast switching speed under 100 nanoseconds for dynamic beamforming
• Low RMS phase and amplitude errors ensuring signal integrity

Applications

• Phased array radar systems
• Electronic warfare applications
• Satellite communication terminals
• 5G base station antenna arrays

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels due to market counterfeiting risks. Confirm lot traceability and RoHS compliance status prior to integration. Note that this specific part number may be subject to discontinuation or end-of-life status; validate current production availability directly with Qorvo before finalizing design-in decisions.

Selection Notes

Select the QPC2108 when designing systems requiring precise digital phase control within the 2.5 to 4 GHz band. Its GaAs pHEMT technology offers superior linearity compared to silicon alternatives, making it suitable for high-power radar environments. Ensure the system architecture supports 6-bit digital control logic and provides the required 0/+5 V drive levels for optimal switching performance.

Part Context

This component belongs to Qorvo's portfolio of RF phase shifters, specifically designed for advanced microwave applications. It utilizes proprietary GaAs pHEMT fabrication to achieve compact size and robust performance. The QPC2108 serves as a critical active element in modern electronic scanning arrays, enabling rapid beam steering without mechanical movement.

Replacement Considerations

Public confirmed substitute part numbers: HMC647, HMC647LP6, TGP2108-SM.
