QPC7333TR7

Overview

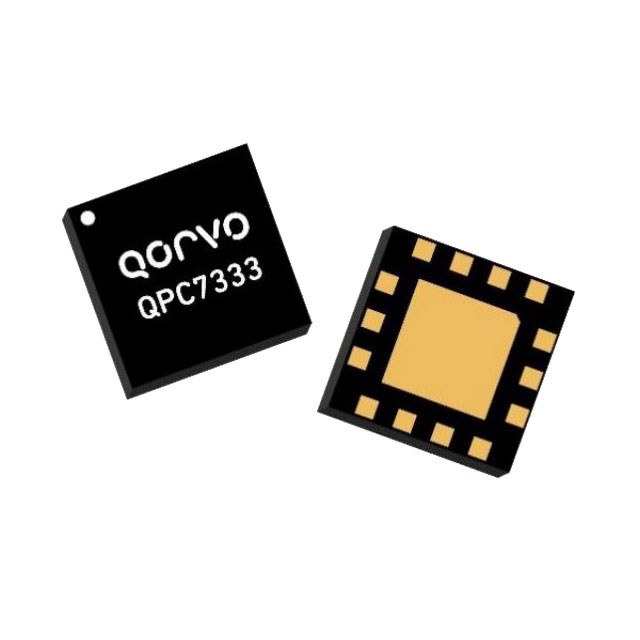

The QPC7333TR7 is a voltage-controlled tilt equalizer from Qorvo, designed for CATV applications. It operates within a frequency range of 5 MHz to 684 MHz and requires a 5 V supply with a typical current draw of 3 mA. The device is housed in a 14-QFN (6x6 mm) package, also referred to as 2424 or 6060 metric. It supports surface-mount installation and functions within an operating temperature range up to +125 °C. The component is supplied on a 7-inch reel containing 500 pieces.

Feature Summary

• Provides variable equalization through voltage-controlled tilt adjustment
• Optimized for cable television signal distribution networks
• Utilizes GaAs technology for RF performance

Applications

• CATV headend signal conditioning
• Amplifier input/output compensation
• Cable modem termination system equalization

Procurement Notes

Verify the specific revision code against the latest Qorvo datasheet to ensure compatibility with current manufacturing standards. Confirm that the 14-QFN footprint matches the target PCB layout dimensions precisely. Check for moisture sensitivity level requirements during storage and reflow soldering processes to prevent package damage.

Selection Notes

Select this component when precise high-frequency tilt correction is required for broadband cable signals. Ensure the control voltage interface aligns with the available DAC or potentiometer outputs in the design. Consider the thermal dissipation capabilities of the 6x6 mm package relative to the ambient operating environment.

Part Context

This part belongs to the QPC7333 series of variable equalizers manufactured by Qorvo. It is distinct from the QPA3333 power amplifier and the QPB9332 VGA. The associated evaluation board is designated as QPC7333PCBA-410, which facilitates testing and integration of the equalizer functionality.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
