QPP0100

Overview

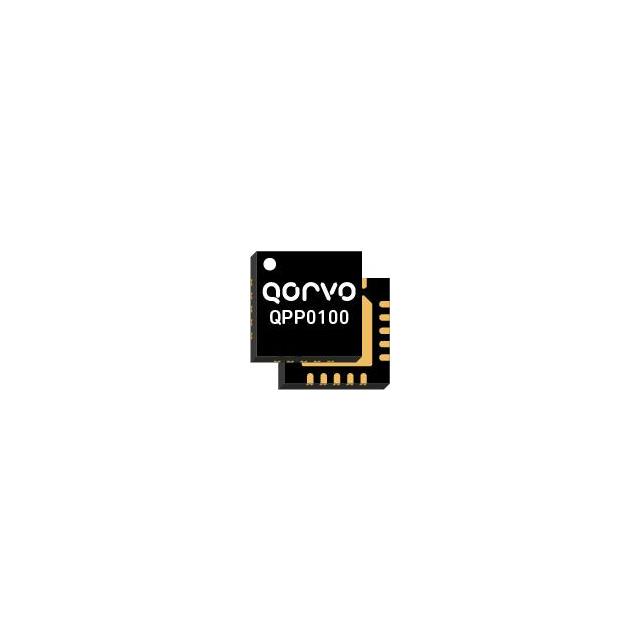

The QPP0100 is an X-Band high-power VPIN limiter designed for robustness against short-pulse input signals up to 100W. It operates within a frequency range of 6 GHz to 12 GHz, covering the 8 GHz to 11.5 GHz band. The device features exceptionally low insertion loss over its wide bandwidth and utilizes a 20-QFN (4x4) package. It serves as a critical signal conditioning component for protecting sensitive RF circuits from high-power interference.

Feature Summary

• High power handling capability with robustness to short-pulse input signals
• Low insertion loss across a wide operational bandwidth
• VPIN technology for effective signal limiting in X-Band applications

Applications

• Radar systems requiring high-power protection
• RF front-end modules in communication systems
• Signal conditioning for sensitive receiver circuits

Procurement Notes

Verify the specific ordering suffix when purchasing, as packaging options such as reel or waffle pack may vary by distributor. Confirm RoHS compliance status through official documentation before integration. Ensure that the selected variant matches the required frequency range and power handling specifications for the target application environment.

Selection Notes

Select the QPP0100 for applications demanding high power tolerance in the X-Band spectrum. Consider the 20-QFN package for surface-mount assembly requirements. Evaluate thermal management needs due to high-power dissipation during limiting events. Compare against lower-power limiters if system constraints allow for reduced pulse handling capabilities.

Part Context

This component belongs to Qorvo's portfolio of RF signal conditioning devices. It complements other limiters like the QPP0025, which targets lower frequency ranges. The QPP0100 specifically addresses high-power X-Band needs, distinguishing it from general-purpose RF ICs and amplifiers in the manufacturer's catalog.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Engineers should consult Qorvo directly for qualified alternatives or cross-reference based on strict electrical parameter matching if direct substitution is required.
