QPQ1060SR

Overview

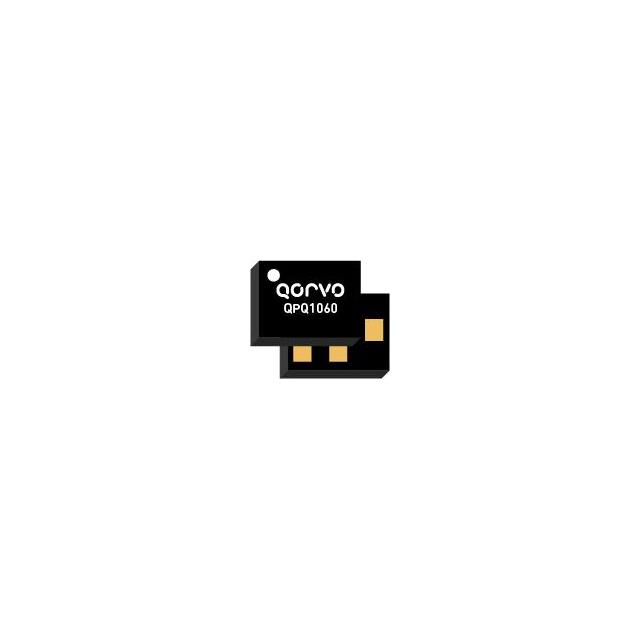

The QPQ1060SR is a Surface Acoustic Wave (SAW) filter manufactured by Qorvo, designed for L1 GPS band applications. It operates at a center frequency of 1.575 GHz with a bandwidth of 31 MHz and an impedance of 50 Ohms. The component features low insertion loss of 1.4 dB and is housed in a compact 5-SMD package without lead. It supports surface mount installation and functions within a temperature range of -40°C to +85°C.

Feature Summary

• Provides high signal rejection for unwanted GPS frequencies
• Optimized for low insertion loss in L1 band reception
• Compact footprint suitable for space-constrained mobile designs

Applications

• GPS receiver front-end modules
• Mobile phone positioning systems
• Automotive navigation units

Procurement Notes

Verify the specific suffix SR against official Qorvo documentation to confirm tape and reel packaging specifications. Ensure compatibility with standard SMD reflow profiles. Confirm RoHS compliance status through current datasheets as regulatory requirements may evolve. Cross-reference pinout diagrams with PCB layout guidelines to prevent installation errors.

Selection Notes

Select this component when designing for L1 GPS bands requiring minimal signal attenuation. The 31 MHz bandwidth suits standard GNSS applications. Consider the 5-SMD package size for board density constraints. Evaluate thermal performance within the specified operating range during system integration.

Part Context

This part belongs to Qorvo's SAW filter portfolio, specifically targeting global navigation satellite systems. It complements other filters like the QPQ1061 for dual-band solutions. The series emphasizes miniaturization and signal integrity for consumer electronics and automotive sectors.

Replacement Considerations

Check for direct substitutes such as QPQ1060TR7 if reel quantity variations are required. Verify electrical equivalence with other L1 SAW filters from different manufacturers before substitution.
