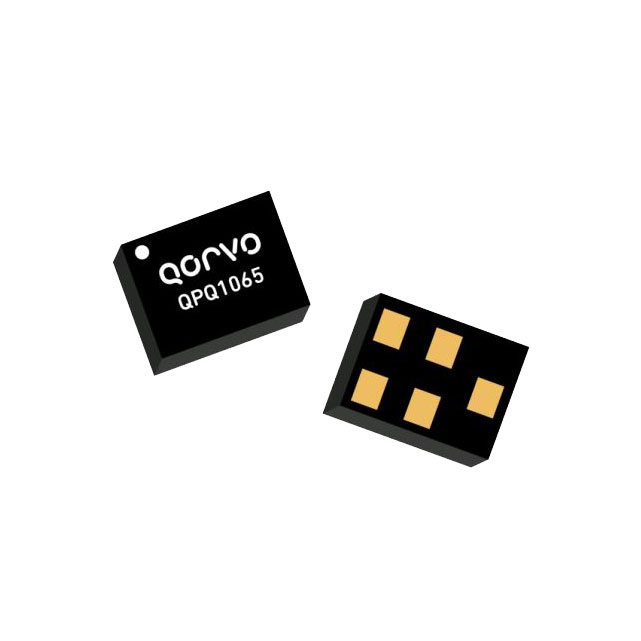

QPQ1065SR

$28.23

Description：IRIDIUM BPF, TC-SAW
Series：-
Mfr：Qorvo
Package：Tape & Reel (TR)

SKU:3f201273eb1e Category: SAW Filters Brand: Qorvo

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IRIDIUM BPF, TC-SAW
Series：-
Mfr：Qorvo
Package：Tape & Reel (TR)
Frequency - Center：1.621GHz
Bandwidth：10.5MHz
Insertion Loss：2.5dB
Ratings：-
Applications：General Purpose
Mounting Type：Surface Mount
Package / Case：5-SMD, No Lead
Height (Max)：0.035" (0.90mm)
Size / Dimension：0.055" L x 0.047" W (1.40mm x 1.20mm)

Download product information

QPQ1065SR

Overview

The QPQ1065SR is a Surface Acoustic Wave (SAW) bandpass filter manufactured by Qorvo. It operates within the Iridium frequency band, specifically covering 1616.0 MHz to 1626.5 MHz with a center frequency of 1621.5 MHz. The device features a 10.5 MHz bandwidth and an insertion loss of 2.5 dB. It utilizes a 5-SMD, no-lead package with dimensions of 1.4 mm x 1.2 mm. The component supports a nominal impedance of 50 ohms and functions reliably across a temperature range of -55°C to +125°C.

Feature Summary

Designed for AltNav and Iridium satellite communication bands
Utilizes SAW technology for signal conditioning
Compact SMD footprint suitable for space-constrained designs

Applications

Iridium satellite navigation systems
AltNav GNSS receivers
Satellite communication modules

Procurement Notes

Verify the specific suffix SR against the manufacturer's current datasheet to confirm packaging details and availability status. Ensure compatibility with the target PCB layout regarding the 5-SMD no-lead package dimensions. Confirm that the operating temperature range meets the environmental requirements of the final assembly. Cross-reference the part number with official Qorvo documentation to avoid counterfeit components.

Selection Notes

Select this component when designing for Iridium or AltNav frequencies requiring a 10.5 MHz bandwidth. The 50-ohm impedance matches standard RF transmission lines. Consider the small 1.4x1.2 mm package size for high-density board layouts. Ensure the system can accommodate the specified 2.5 dB insertion loss in the link budget calculations.

Part Context

This part belongs to Qorvo's portfolio of RF filters designed for global navigation satellite systems. It serves as a critical front-end component for filtering out-of-band interference in L-band applications. The SAW construction provides robust performance in compact form factors typical of modern mobile and IoT satellite devices.
