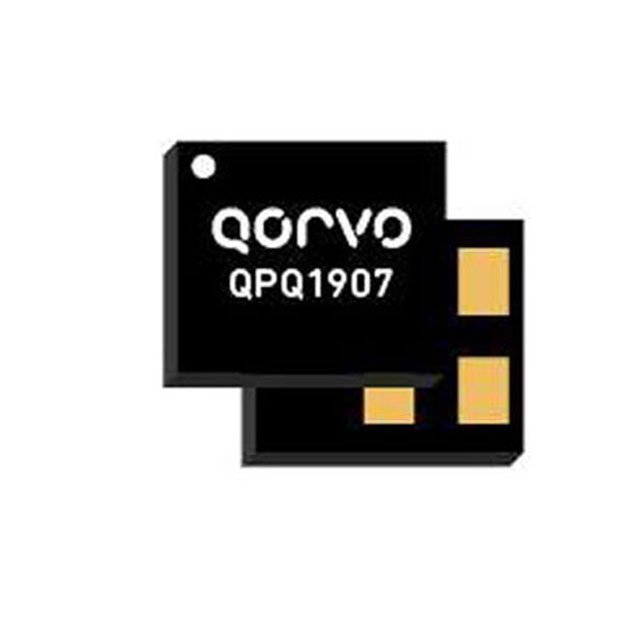

QPQ1907TR13-10K

Overview

The QPQ1907TR13-10K is a Band Acoustic Wave (BAW) filter designed for wireless coexistence applications. It operates with a center frequency of 2.442 GHz and provides an 80 MHz bandwidth. The device exhibits a typical insertion loss of 2.2 dB. It is housed in an 80 MHz bandwidth, 5-SMD, no lead package configuration suitable for surface mount technology.

Feature Summary

• Utilizes Band Acoustic Wave (BAW) technology for high performance
• Designed to support Wi-Fi, Bluetooth, and LTE coexistence
• Optimized for signal integrity in crowded RF environments

Applications

• Wi-Fi modules requiring interference mitigation
• Bluetooth Low Energy (BLE) transceivers
• LTE cellular handsets operating in shared spectrum bands

Procurement Notes

Verify the specific suffix -10K against official Qorvo documentation to confirm tape and reel specifications. Ensure compatibility with automated assembly processes by checking moisture sensitivity levels and reflow profile requirements prior to integration into manufacturing lines.

Selection Notes

Select this component when designing systems that require simultaneous operation of 2.4 GHz ISM band technologies. The BAW architecture offers superior selectivity compared to traditional LC filters. Confirm that the 5-SMD footprint aligns with the target PCB layout constraints and thermal management strategies.

Part Context

This part belongs to Qorvo's portfolio of signal conditioning components focused on RF front-end optimization. It addresses the growing demand for compact solutions in mobile devices where multiple wireless standards must operate concurrently without mutual interference.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
