QPQ3501TR7

Overview

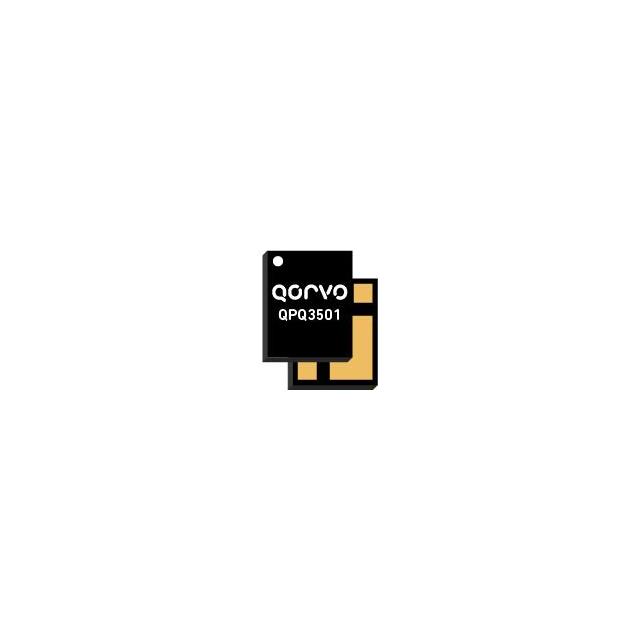

The QPQ3501TR7 is a Band Acoustic Wave (BAW) filter manufactured by Qorvo, designed for signal conditioning in RF applications. It operates within a frequency range of 3.3 GHz to 3.6 GHz, covering a bandwidth of 300 MHz. The component features an insertion loss of 3 dB and utilizes Surface Mount Device/Surface Mount Technology (SMD/SMT) termination. Packaged in a compact 2.0 x 1.6 mm form factor, it is intended for board mounting. The device belongs to the QPQ3501 series and is supplied in reels with a factory packaging quantity of 2500 units.

Feature Summary

• Utilizes Band Acoustic Wave technology for high-performance signal filtering
• Optimized specifically for sub-Band n78 frequency operations
• Housed in a compact surface-mount package suitable for base station integration

Applications

• Base station RF front-end modules
• Sub-Band n78 cellular infrastructure
• Signal conditioning in wireless communication systems

Procurement Notes

Verify component authenticity through authorized Qorvo distributors or certified supply chain partners. Confirm RoHS compliance status via official documentation before integration. Ensure storage conditions account for moisture sensitivity as indicated in the datasheet. Validate that the specific tape-and-reel configuration matches assembly line requirements. Cross-reference part numbers to distinguish between standard and alternate packaging variants.

Selection Notes

Select this component when designing for sub-Band n78 coverage requiring low insertion loss and compact footprint. The BAW technology offers superior performance compared to traditional SAW filters in this frequency range. Consider the 2.0 x 1.6 mm package dimensions for PCB layout constraints. Evaluate thermal management needs based on the specified 3 dB insertion loss characteristics in high-power base station environments.

Part Context

The QPQ3501TR7 is part of Qorvo's portfolio of advanced RF filters leveraging proprietary BAW technology. This series targets modern cellular infrastructure demands for miniaturization and spectral efficiency. As a specialized signal conditioning component, it supports the increasing complexity of 5G network deployments. The product represents Qorvo's focus on high-performance solutions for base station applications.

Replacement Considerations

QPQ3500TR7: Similar BAW filter with overlapping frequency specifications.
