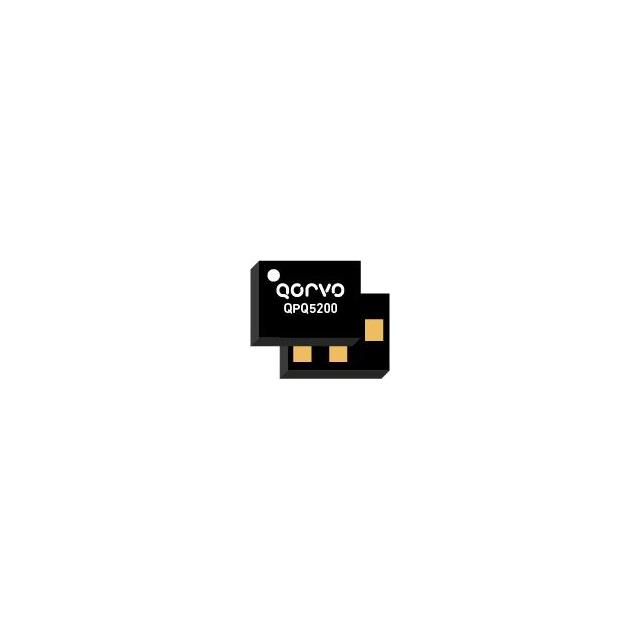

QPQ5200TR13

Overview

The QPQ5200TR13 is a Bulk Acoustic Wave (BAW) band-pass filter designed for Wi-Fi applications in the 2.4 GHz ISM band, specifically covering channels 1 through 11. It operates within a frequency range of 2.402 GHz to 2.471 GHz with a bandwidth of 69 MHz. The component features low insertion loss of 1 dB and utilizes an SMD/SMT package measuring 1.7 mm x 1.3 mm. It supports board mounting and functions between -20°C and +95°C.

Feature Summary

• High-performance BAW technology providing extremely steep skirt selectivity
• Optimized signal conditioning for Wi-Fi U-NII edge bands
• Low insertion loss for efficient signal transmission

Applications

• Wi-Fi 6/6E/7 edge channel filtering
• ISM band signal conditioning
• Wireless LAN front-end modules

Procurement Notes

Verify moisture sensitivity levels and handling requirements before assembly. Confirm RoHS compliance status via official datasheets. Check for Product Change Notifications regarding manufacturing updates. Ensure ESD protection protocols are followed during storage and installation. Validate package dimensions against PCB footprint specifications.

Selection Notes

Select this component for designs requiring high selectivity in the 2.4 GHz Wi-Fi spectrum. Consider the 1.7 mm x 1.3 mm footprint for space-constrained layouts. Evaluate thermal performance within the specified operating temperature range. Compare insertion loss characteristics against alternative filters for system efficiency.

Part Context

Part of the QPQ5200 series from Qorvo, focusing on signal conditioning for wireless communications. Designed to enhance receiver sensitivity and transmitter clarity in crowded RF environments. Utilizes advanced BAW technology for superior performance compared to traditional LC filters.

Replacement Considerations

QPQ5600TR13: Similar Qorvo filter but optimized for 6 GHz Wi-Fi U-NII 5 bands rather than 2.4 GHz.
