QPQ5500TR13

Overview

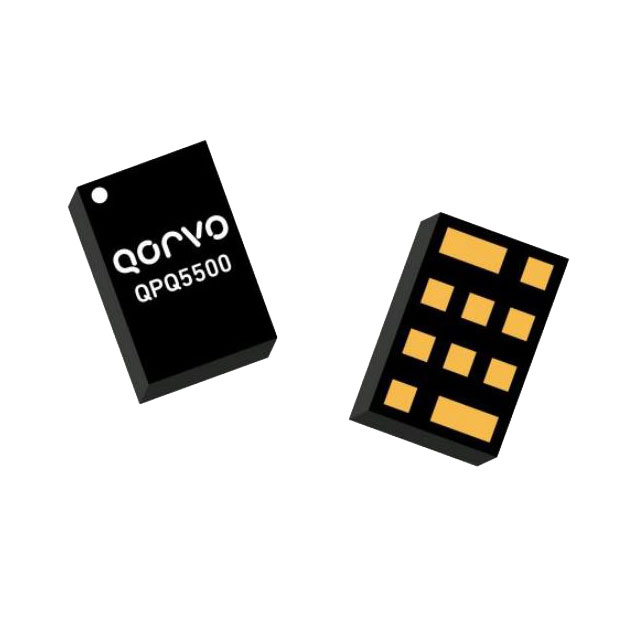

The QPQ5500TR13 is a bandpass filter designed for 5 GHz Wi-Fi UNII 1-3 bands. It operates within a frequency range of 5.17 GHz to 5.835 GHz, with a center frequency of 5.503 GHz and a bandwidth of 665 MHz. The component features an insertion loss of 1.9 dB and utilizes BAW technology. Packaged in a 10-SMD, no-lead format, it supports surface-mount installation.

Feature Summary

• Optimized signal conditioning for 5 GHz Wi-Fi UNII 1-3 bands
• Utilizes BAW technology for enhanced performance
• Designed as a bandboost filter for edge applications

Applications

• 5 GHz Wi-Fi U-NII 1-3 band edge boost filters
• Wireless local area network (WLAN) systems
• Signal conditioning in RF front-end modules

Procurement Notes

Verify the specific suffix TR13 against official Qorvo documentation to confirm reel packaging specifications. Confirm RoHS compliance status through current datasheets. Check for any product change notifications or end-of-life notices that may affect long-term availability and supply chain stability.

Selection Notes

Select this component for designs requiring precise filtering in the 5.17 GHz to 5.835 GHz range. Ensure the PCB layout accommodates the 10-SMD package dimensions. Validate thermal management capabilities against the specified operating temperature range during system integration.

Part Context

This part belongs to Qorvo's portfolio of wireless innovations, specifically targeting high-performance RF solutions. It complements other signal conditioning components like the QPQ5200 and QPQ5600, addressing different Wi-Fi frequency bands within the broader ecosystem of integrated circuit products.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data.
