Product Detailed Parameters
- Description：5GHZ UNII 2C-4 BANDBOOST FILTER
- Series：-
- Mfr：Qorvo
- Package：Tape & Reel (TR)
- Frequency：-
- Bandwidth：-
- Filter Type：-
- Ripple：-
- Insertion Loss：-
- Mounting Type：-
- Package / Case：-
- Size / Dimension：-
- Height (Max)：-
Download product information
Overview

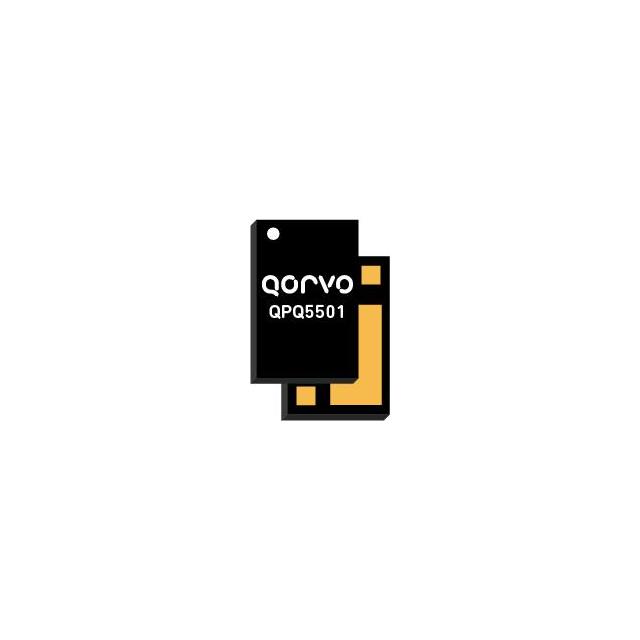

The QPQ5501TR13 is a bandBoost filter from the Qorvo QPQ5501 series, designed for signal conditioning in wireless applications. It operates at a center frequency of 5 GHz, covering the UNII 2c-4 band range from 5.49 GHz to 5.895 GHz. The component utilizes BAW technology and features an SMD/SMT package suitable for board mount installation. It supports Reel and Cut Tape packaging options with a factory pack quantity of 10,000 units. The device functions within a temperature range of -20°C to +95°C and exhibits humidity sensitivity.
Feature Summary
- Implements BAW technology for high-performance signal conditioning
- Optimized for UNII 2c-4 band filtering applications
- Designed for surface-mount board integration
Applications
- 5GHz Wi-Fi systems
- UNII 2c-4 band signal processing
- Wireless communication devices requiring bandBoost filtering
Procurement Notes
Verify the specific ordering suffix TR13 against official Qorvo documentation to confirm reel specifications and tape dimensions. Confirm that the intended application environment remains within the stated operating temperature limits of -20°C to +95°C. Check for humidity sensitivity handling requirements during storage and assembly processes as indicated by the component's moisture classification. Ensure compatibility with standard SMD/SMT reflow profiles for board mounting.
Selection Notes
Select this component when designing circuits for the 5.49 GHz to 5.895 GHz frequency range. Consider the BAW technology characteristics for appropriate signal conditioning needs. Evaluate the physical footprint and SMD/SMT termination type against PCB layout constraints. Assess the thermal performance capabilities relative to the maximum operating temperature of +95°C.
Part Context
This part belongs to the QPQ5501 series of signal conditioning components manufactured by Qorvo. The series focuses on bandBoost filters for wireless applications. The QPQ5501TR13 variant specifically addresses the 5 GHz UNII 2c-4 band requirements using BAW technology. It represents a specialized solution for modern wireless communication standards requiring precise frequency filtering.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided data.
