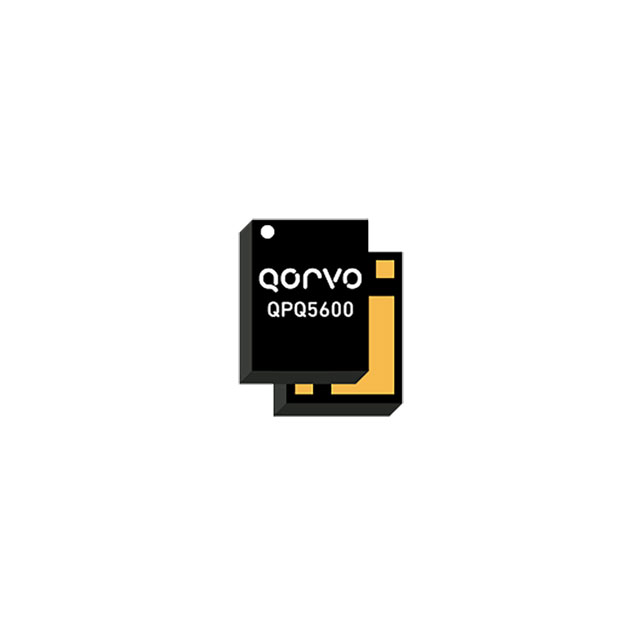

QPQ5600TR13

Overview

The QPQ5600TR13 is a signal conditioning component manufactured by Qorvo, specifically designed as a Wi-Fi U-NII 5 band boost filter. It operates at a frequency of 6 GHz with a bandwidth of 320 MHz. The device features an insertion loss of 2.5 dB and utilizes SMD/SMT termination types. It is housed in a compact 1.7 mm x 1.3 mm package suitable for board mounting. The operational temperature range spans from -20 C to +95 C. This component belongs to the QPQ5600 series and is available in Reel and Cut Tape packaging formats.

Feature Summary

• Provides high near-band rejection in UNII 1-3 bands while maintaining low loss in the UNII 5 band
• Utilizes Bulk Acoustic Wave (BAW) technology for steep skirt characteristics
• Designed for signal conditioning in 6 GHz Wi-Fi applications

Applications

• Wi-Fi 6E access points and client devices operating in the 6 GHz spectrum
• Signal path filtering for U-NII 5 band transmission and reception
• Wireless infrastructure requiring high selectivity in dense RF environments

Procurement Notes

Verify current availability status as supply may be limited or subject to factory special orders. Confirm RoHS compliance details through official documentation before integration. Ensure handling procedures account for moisture sensitivity classification during storage and reflow processes. Validate that the specific ordering suffix matches the required packaging format for your manufacturing line.

Selection Notes

Select this component when designing systems requiring dedicated filtering for the 6 GHz Wi-Fi U-NII 5 band. Consider its small 1.7 mm x 1.3 mm footprint for space-constrained layouts. Evaluate the 2.5 dB insertion loss against system link budget requirements. Ensure compatibility with SMD/SMT assembly processes and verify thermal performance within the specified -20 C to +95 C operating range.

Part Context

This part is part of Qorvo's portfolio of signal conditioning solutions for wireless communications. It complements other RF components like switches and amplifiers in complete front-end modules. The QPQ5600 series focuses on enabling next-generation Wi-Fi standards by addressing interference challenges in the unlicensed 6 GHz spectrum.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
