QPQ5601TR13

Overview

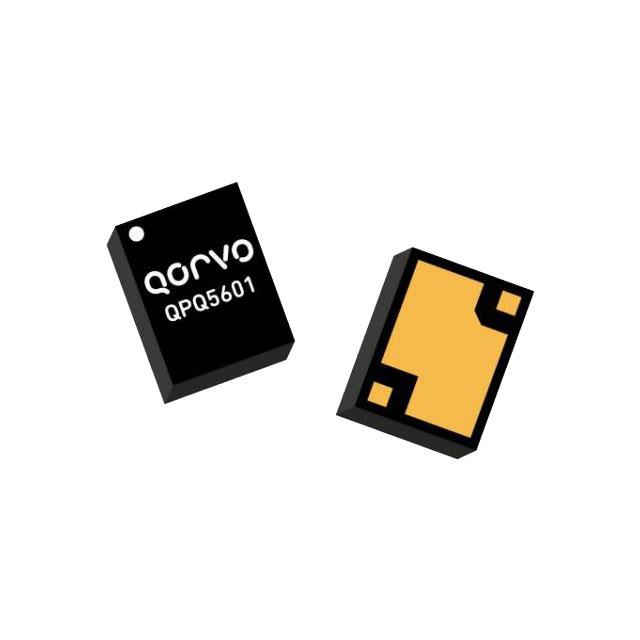

The QPQ5601TR13 is a Bulk Acoustic Wave (BAW) band-pass filter designed for Wi-Fi U-NII 5 to 8 bands. It operates within a frequency range of 5.945 GHz to 7.125 GHz with a bandwidth of 1.18 GHz and a center frequency of 6.535 GHz. The component features an insertion loss of 2.5 dB and utilizes a 3-SMD, no-lead package measuring 1.7 mm x 1.3 mm. It supports surface mount installation and functions between -20°C and +95°C.

Feature Summary

• High-performance BAW technology optimized for high-power applications
• Integrated signal conditioning for Wi-Fi U-NII 5 to 8 bands
• Compact SMD footprint suitable for dense board layouts

Applications

• Wi-Fi 6E access points and client devices
• Wi-Fi 7 infrastructure equipment
• Wireless LAN modules requiring U-NII 5-8 band support

Procurement Notes

Verify the specific suffix TR13 against official Qorvo documentation to confirm reel packaging and tape specifications. Confirm RoHS compliance status through current datasheets as regulatory requirements may evolve. Ensure ESD handling protocols are followed due to moisture sensitivity classification. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Selection Notes

Select this component when designing systems requiring filtering for the 5.945 GHz to 7.125 GHz spectrum. The BAW construction offers superior performance compared to traditional LC filters in this frequency range. Consider the 1.7 mm x 1.3 mm package size during PCB layout planning. Evaluate thermal management capabilities given the operational temperature limits.

Part Context

This filter belongs to Qorvo's QPQ5600 series, which includes various bandpass filters for wireless communications. The series targets modern Wi-Fi standards operating in the 6 GHz unlicensed spectrum. It complements other RF front-end components like switches and amplifiers in complete signal chain solutions.

Replacement Considerations

QPQ5600TR13 serves as a related variant within the same product family.
