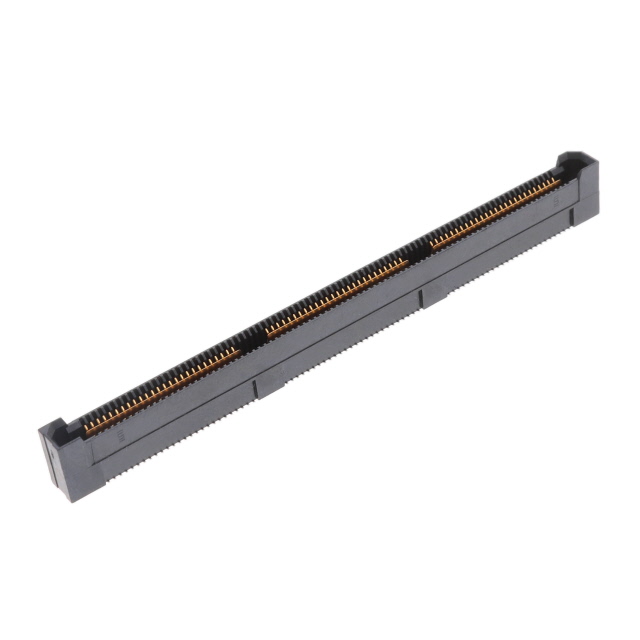

Arrays, Edge Type, Mezzanine (Board To Board) QRF8-078-07.0-L-D-A-GP product image

QRF8-078-07.0-L-D-A-GP

$19.06

Description：.8MM Q RATE SOCKET WITH EDGE RAT
Series：QRate® QRF8
Mfr：Samtec Inc.
Package：Tray

SKU:5c2b06ffacaa Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Samtec Inc.

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

QRF8-078-07.0-L-D-A-GP is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is .8MM Q RATE SOCKET WITH EDGE RAT. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for QRF8-078-07.0-L-D-A-GP

Description：.8MM Q RATE SOCKET WITH EDGE RAT
Series：QRate® QRF8
Mfr：Samtec Inc.
Package：Tray
Connector Type：Array, Female Sockets
Number of Positions：156
Pitch：0.031" (0.80mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：Board Guide, Ground Bus (Plane)
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Mated Stacking Heights：7mm, 10mm, 12mm
Height Above Board：0.276" (7.01mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for QRF8-078-07.0-L-D-A-GP

QRF8-078-07.0-L-D-A-GP
