QT216G-24.000MDDB-T

Overview

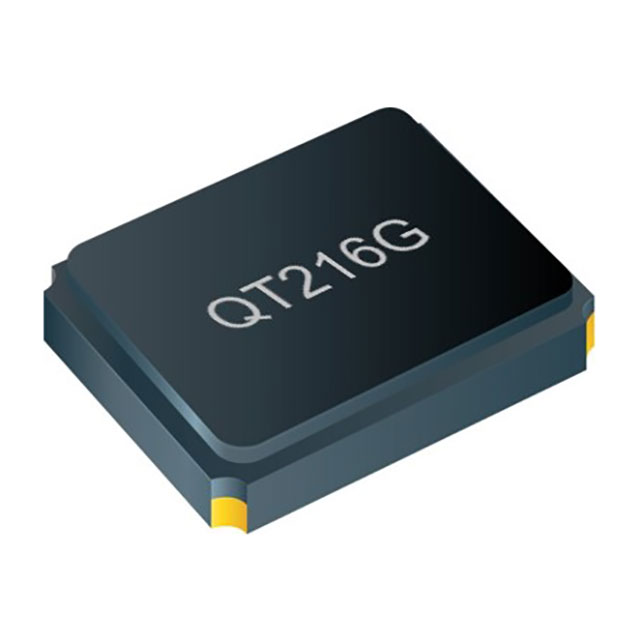

The QST QT216G-24.000MDDB-T is a surface-mount quartz crystal resonator with a nominal frequency of 24 MHz. It features a compact SMD package measuring 2.0 x 1.6 x 0.6 mm. The component exhibits a load capacitance of 6 pF and maintains a frequency tolerance and stability of ±20 ppm at 25°C and across the -20 to 70°C operating temperature range.

Feature Summary

• Surface-mount quartz crystal design for embedded systems
• Compact 2.0x1.6mm footprint suitable for space-constrained layouts
• Stable frequency performance within specified industrial temperature limits

Applications

• Embedded system clock generation
• Industrial automation control circuits
• General electronics timing references

Procurement Notes

Verify that the specific part number matches the required frequency, tolerance, and package dimensions. Confirm compliance with RoHS3 standards if environmental regulations apply. Ensure the supplier provides official documentation confirming the 6pF load capacitance and ±20ppm stability specifications before finalizing procurement.

Selection Notes

Select this component when a 24 MHz reference signal is required in a small form factor. The ±20 ppm stability is adequate for standard digital interfaces. Consider the 6pF load capacitance requirement to ensure proper circuit matching. Verify the -20 to 70°C temperature range meets the operational environment requirements.

Part Context

This component belongs to the family of surface-mount quartz crystals designed for reliable timing applications. It serves as a fundamental frequency reference for microcontrollers and communication modules. The standardized dimensions facilitate automated assembly processes in modern electronics manufacturing.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
