QT216S-24.000MEIV-T

Overview

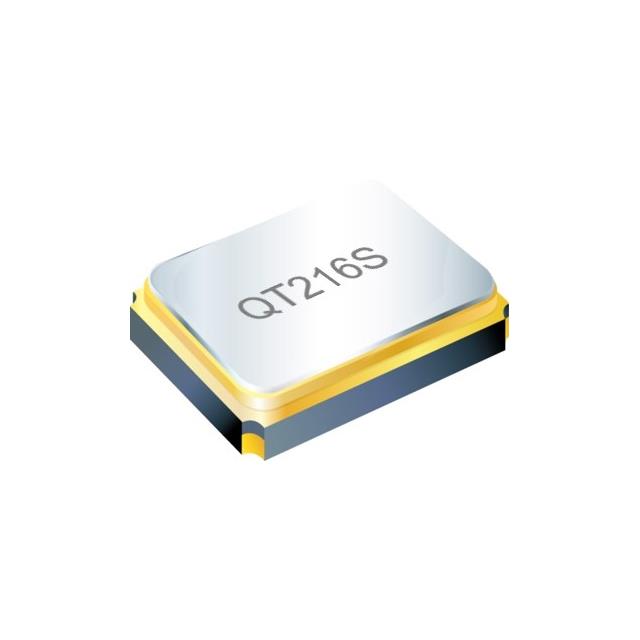

The QT216S-24.000MEIV-T is a quartz crystal resonator manufactured by QST, operating at a nominal frequency of 24 MHz. It features a load capacitance of 12 pF and an equivalent series resistance (ESR) of 90 Ohms. The component exhibits a frequency tolerance of ±30 ppm at 25°C and maintains stability within ±30 ppm across the industrial temperature range of -40°C to +85°C. It utilizes a 4-SMD, no lead package with dimensions of 2.0 mm x 1.6 mm.

Feature Summary

• Provides stable 24 MHz timing reference via quartz resonance
• Designed for surface mount integration in compact circuits
• Maintains frequency stability across wide industrial temperature ranges

Applications

• Microcontroller clock sources
• Communication module timing
• Digital signal processing interfaces

Procurement Notes

Verify the specific suffix MEIV against official QST documentation to confirm exact electrical tolerances and temperature ratings. Ensure compatibility with PCB footprint requirements for the 2.0x1.6 mm SMD package. Confirm RoHS compliance status through current manufacturer declarations before finalizing procurement specifications.

Selection Notes

Select this component when a 24 MHz crystal with ±30 ppm tolerance is required for industrial environments spanning -40°C to +85°C. The 12 pF load capacitance must match the oscillator circuit design. Consider the 90 Ohm ESR relative to drive level limitations in the target application circuitry.

Part Context

This part belongs to the QT216S series of surface-mount quartz crystals from QST. These components are designed for general-purpose timing applications requiring reliable frequency generation in space-constrained electronic assemblies.

Replacement Considerations

Cross-reference with other 24 MHz crystals featuring identical 2.0x1.6 mm footprints, 12 pF load capacitance, and ±30 ppm tolerance. Verify pinout and mounting compatibility before substitution.
