Product Detailed Parameters
- Description：2.0X1.6 XTAL 20PPM 20PPM 10PF
- Series：-
- Mfr：QST
- Package：Tape & Reel (TR)
- Type：-
- Frequency：-
- Frequency Stability：-
- Frequency Tolerance：-
- Load Capacitance：-
- ESR (Equivalent Series Resistance)：-
- Operating Mode：-
- Operating Temperature：-
- Ratings：-
- Mounting Type：-
- Package / Case：-
- Size / Dimension：-
- Height - Seated (Max)：-
Download product information
Overview

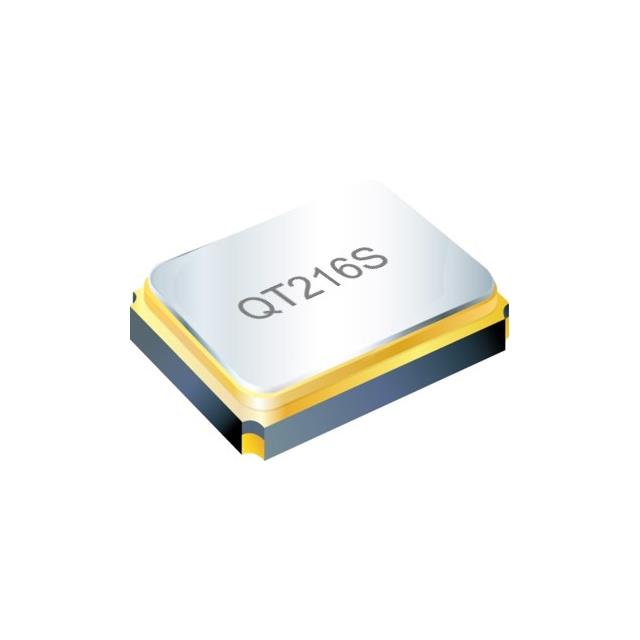

The QT216S-96.000MDIQ-T is a quartz crystal resonator manufactured by QST, designed for surface-mount applications. It features a 4-SMD, No Lead package with dimensions of 2.0 x 1.6 mm. The component operates at a fundamental frequency of 96.000 MHz and utilizes a load capacitance of 10 pF. Frequency stability is rated at ±20 ppm at 25°C and ±20 ppm across the -40°C to +85°C temperature range. This device is intended for precise timing control in electronic circuits requiring high-frequency accuracy.
Feature Summary
- Surface-mount design with no lead construction for automated assembly
- High-frequency operation at 96 MHz for precision timing
- Stable performance across industrial temperature ranges
Applications
- Clock generation for microprocessors
- Timing reference for communication modules
- Frequency control in consumer electronics
Procurement Notes
Verify the manufacturer designation on official documentation, as some sources list TXC Corporation while others attribute it to QST. Confirm the specific suffix MDIQ-T matches the required load capacitance and stability specifications. Ensure the 4-SMD No Lead package aligns with your PCB footprint requirements before ordering.
Selection Notes
Select this component when a 96 MHz surface-mount crystal is required. Consider the ±20 ppm stability requirement for your application environment. Verify that the 10 pF load capacitance matches your oscillator circuit design. Check compatibility with your manufacturing process for 4-SMD packages.
Part Context
This part belongs to the QT216S series of quartz crystals. Similar models include the QT216S-32.000METQ-T (32 MHz) and QT216G-38.400MDIQ-T (38.4 MHz). These components share similar package dimensions but vary in frequency and stability ratings. The series is commonly used in mobile and portable devices.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Cross-referencing requires matching frequency, package type, and stability specifications from official manufacturer datasheets.
