QT325G-16.000MEIV-T

Overview

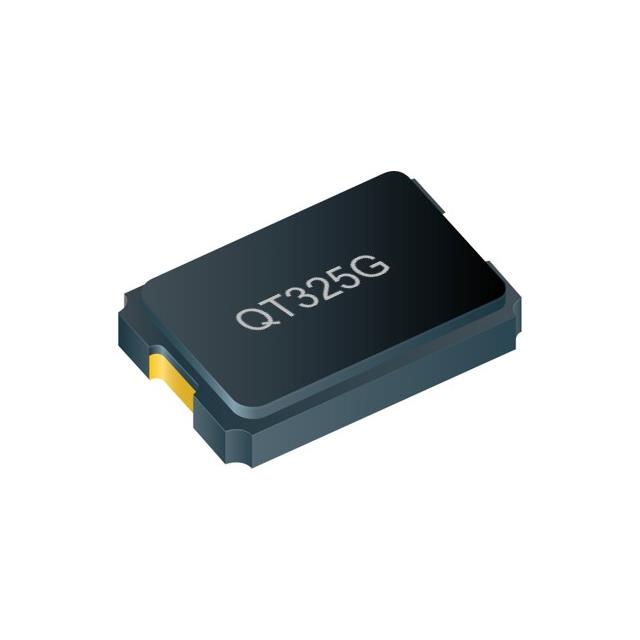

The QT325G-16.000MEIV-T is a surface-mount quartz crystal manufactured by QST, designed for precise timing applications. It operates at a nominal frequency of 16.000 MHz with a load capacitance of 8 pF. The component exhibits a frequency stability of ±10 ppm within an operating temperature range of -30°C to +85°C. This SMD package variant ensures reliable integration into compact electronic circuits requiring stable clock signals.

Feature Summary

• Surface-mount quartz crystal construction
• High precision frequency stability
• Wide operating temperature capability

Applications

• General purpose timing circuits
• Microcontroller clock sources
• Communication equipment oscillators

Procurement Notes

Verify the specific suffix MEIV-T against official QST documentation to confirm the exact temperature range and tolerance specifications. Ensure compatibility with existing PCB footprints and reflow soldering profiles. Cross-reference the manufacturer datasheet for handling instructions and storage conditions to maintain component integrity during assembly.

Selection Notes

Select this component when a 16 MHz fundamental frequency is required with ±10 ppm stability over a -30°C to +85°C range. The 8 pF load capacitance must match the oscillator circuit design. Consider the SMD form factor for automated assembly processes and space-constrained board layouts compared to through-hole alternatives.

Part Context

This part belongs to the QT325G series of quartz crystals from QST. The series offers various frequency and tolerance options in a standardized surface-mount package. The QT325G designation indicates a specific footprint and electrical characteristic set common across the product line, ensuring interchangeability within defined parameters.

Replacement Considerations

Consult QST technical support or authorized distributors for verified substitute part numbers. Generic replacements may not match the specific -30°C to +85°C temperature range or ±10 ppm stability requirements. Validate any alternative against the original schematic load capacitance and drive level specifications.
