QTO107-10.000MBV-T

Overview

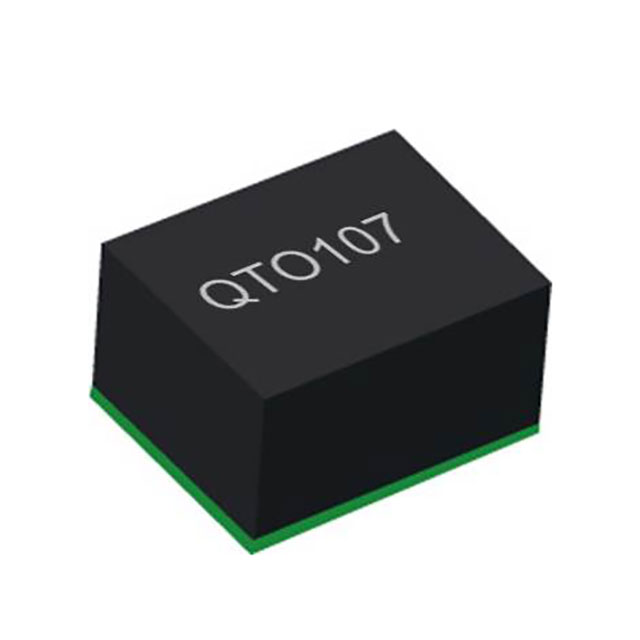

The QTO107-10.000MBV-T is a quartz OCXO oscillator manufactured by QST Products, LLC. It operates at a frequency of 10.000 MHz with a CMOS output format. The device requires a supply voltage of 3.3 V and features a load capacitance of 15 pF. It is housed in a 6-SMD, No Lead package with dimensions of 9.7 mm x 7.5 mm. The unit supports a minimum operating temperature of -40°C and a maximum of +85°C.

Feature Summary

• Utilizes SC cut crystal technology for stable oscillation
• Provides CMOS output signal format
• Operates within a wide industrial temperature range

Applications

• Precision timing systems requiring high stability
• Telecommunications equipment
• Test and measurement instruments

Procurement Notes

Verify the manufacturer designation, as some sources list TXC Corporation while others specify QST Products, LLC. Confirm the specific suffix matches the required frequency and packaging configuration. Ensure compatibility with the 3.3V supply requirement and CMOS interface before integration into the design.

Selection Notes

Select this component when a 10 MHz reference is needed with low phase noise characteristics typical of OCXOs. The 6-SMD no-lead package suits surface-mount assembly processes. Consider the thermal management requirements associated with oven-controlled operation within the specified temperature limits.

Part Context

This part belongs to the QTO107 series of quartz OCXO oscillators. The series includes variants with different frequencies such as 20.000 MHz and 48.000 MHz. All models share similar physical dimensions and electrical interfaces, differing primarily in their nominal operating frequency and specific stability parameters.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Cross-referencing with other manufacturers requires independent verification of pinout, voltage, and stability specifications.
