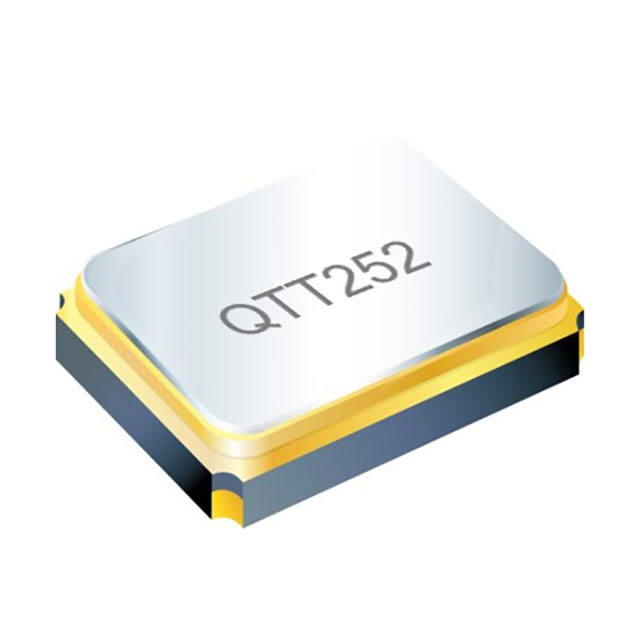

QTT252-32.000MBI-T

Description：XTAL OSC TCXO 32.0000MHZ SNWV
Series：QTT252
Mfr：QST
Package：Tape & Reel (TR)

SKU:a0a3e972f58f Category: Oscillators Brand: QST

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：XTAL OSC TCXO 32.0000MHZ SNWV
Series：QTT252
Mfr：QST
Package：Tape & Reel (TR)
Base Resonator：Crystal
Type：TCXO
Frequency：32 MHz
Function：-
Output：Clipped Sine Wave
Voltage - Supply：3.3V
Frequency Stability：±1ppm
Absolute Pull Range (APR)：-
Operating Temperature：-30°C ~ 85°C
Spread Spectrum Bandwidth：-
Current - Supply (Max)：2mA
Ratings：-
Mounting Type：Surface Mount
Package / Case：4-SMD, No Lead
Size / Dimension：0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)：0.031" (0.80mm)
Supplier Device Package：-

Download product information

QTT252-32.000MBI-T

Overview

The QTT252-32.000MBI-T is a Temperature Compensated Crystal Oscillator (TCXO) manufactured by QST Products, LLC. It operates at a nominal frequency of 32 MHz with a standard frequency stability of ±1 ppm. The device utilizes a clipped sine wave output type and requires a supply voltage of 3.3V. It is housed in an SMD2520-4P package and is designed for operation within a temperature range of -30°C to +85°C. The component is RoHS compliant and lead-free.

Feature Summary

Temperature compensated crystal oscillator design ensuring high frequency stability across varying thermal conditions
Clipped sine wave output suitable for digital clocking applications
Compact surface-mount package format for automated assembly integration

Applications

Precision timing circuits requiring stable clock signals
Telecommunications equipment operating in variable environments
Industrial control systems needing reliable oscillation sources

Procurement Notes

Verify the specific ordering suffix to confirm the exact frequency tolerance and package variant. Ensure the procurement source provides valid RoHS compliance documentation. Confirm that the supplier offers genuine factory-sealed units with recent date codes to guarantee performance reliability. Cross-reference the part number against official manufacturer catalogs to avoid counterfeit components.

Selection Notes

Select this component when a 32 MHz TCXO with ±1 ppm stability is required. Consider the SMD2520-4P footprint for board space constraints. Evaluate the -30°C to +85°C operating range against environmental requirements. Compare clipped sine wave outputs against other waveform types if signal integrity is critical.

Part Context

This part belongs to the QTT252 series of temperature-compensated crystal oscillators from QST Products. The series includes various frequencies and stability options. The QTT252-32.000MBI-T specifically targets applications demanding precise timing at 32 MHz with low phase noise and high stability.
