QVMQF576D33-2.5B-57.14288

Oscillators Overview

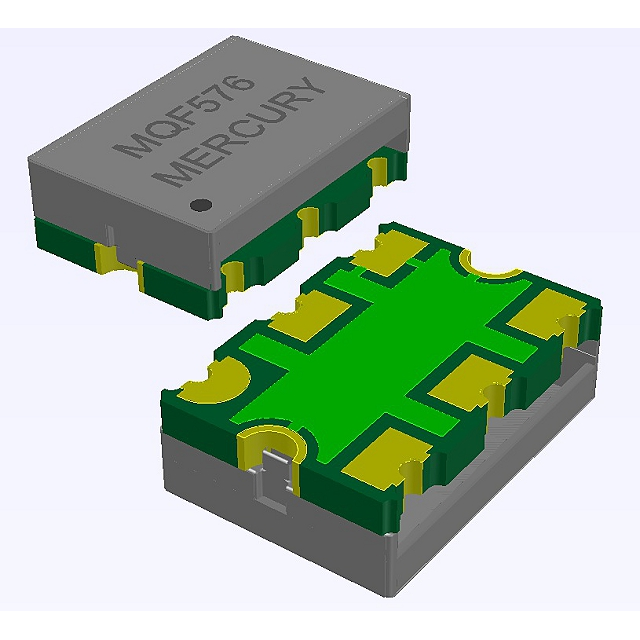

The QVMQF576D33-2.5B-57.14288 is a temperature-compensated crystal oscillator (TCXO) manufactured by Mercury Electronics Ind. Co. Ltd. It operates at a nominal frequency of 57.14288 MHz with a frequency stability of ±2.5 ppm and an absolute pull range of ±8 ppm. The device utilizes LVDS output signaling and requires a 3.3V supply voltage. It features Enable/Disable functionality and is housed in a compact 6-SMD, No Lead package measuring 7.00mm x 5.00mm.

Oscillators Feature Summary

• Provides precise timing signals via LVDS output interface for high-speed digital applications.
• Incorporates temperature compensation to maintain frequency stability within specified limits across operating conditions.
• Supports system power management through dedicated Enable/Disable control functionality.

Oscillators Applications

• High-speed serial communication interfaces requiring stable clock sources
• Data acquisition systems needing precise timing synchronization
• Telecommunications equipment utilizing LVDS signal standards

Oscillators Procurement Notes

Verify the specific part number QVMQF576D33-2.5B-57.14288 against official Mercury Electronics documentation to confirm current availability and manufacturing status. Ensure that the required frequency stability of ±2.5 ppm and LVDS output type align with your circuit design specifications before procurement. Cross-reference the 3.3V supply requirement and 6-SMD package dimensions with your PCB layout constraints to guarantee physical compatibility.

Oscillators Selection Notes

Select this component when a stable 57.14288 MHz clock source with LVDS outputs is required. The ±2.5 ppm stability makes it suitable for applications sensitive to phase noise or jitter. Consider the 3.3V operating voltage and Enable/Disable pin requirements during schematic design. The surface-mount package facilitates automated assembly processes for high-volume production environments.

Oscillators Part Context

This TCXO belongs to the QVMQF series from Mercury Electronics, designed for compact electronic devices. The series typically offers various frequencies and output types to meet diverse timing needs. The 57.14288 MHz variant specifically targets applications requiring this exact frequency standard, such as certain data conversion or communication protocols.

Oscillators Replacement Considerations

Direct substitutes must match the 57.14288 MHz frequency, LVDS output, 3.3V supply, and 6-SMD package. Verify equivalent stability and pull range specifications. Consult Mercury Electronics for authorized cross-references or updated revisions of this specific part number.
