QVMQF576P33-2.0A-13.000

Oscillators Overview

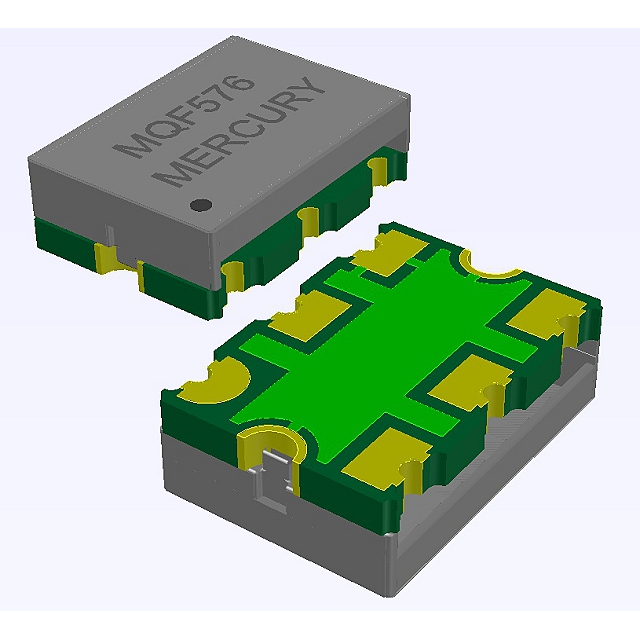

The QVMQF576P33-2.0A-13.000 is a Voltage-Controlled Temperature Compensated Crystal Oscillator (VCTCXO) manufactured by Mercury Electronics Ind. Co. Ltd. It operates at a nominal frequency of 13.000 MHz with an LVPECL output type. The device requires a 3.3 V supply voltage and features an Enable/Disable control function. It is designed for surface mount installation in a 6-SMD, No Lead package. The component supports an operating temperature range from -40°C to 85°C.

Oscillators Feature Summary

• Voltage-controlled temperature compensation for stability
• LVPECL differential output interface
• Integrated enable/disable control functionality

Oscillators Applications

• Telecommunications base stations
• High-speed data transmission systems
• Network synchronization equipment

Oscillators Procurement Notes

Verify the specific datasheet version for precise frequency tolerance and phase noise specifications. Confirm that the LVPECL output compatibility matches the receiving circuit requirements. Ensure the 6-SMD no-lead package dimensions align with the PCB footprint design. Check for any specific reflow soldering profile recommendations provided by the manufacturer.

Oscillators Selection Notes

Select this component when a stable 13 MHz reference signal with voltage control capability is required. The LVPECL output is suitable for high-speed digital interfaces requiring low jitter. Consider the -40°C to 85°C operating range for industrial or outdoor applications. Verify power consumption constraints against the 3.3V supply availability.

Oscillators Part Context

This model belongs to the QVMQF series of VCTCXOs from Mercury Electronics. These oscillators combine crystal stability with voltage tuning for precise frequency adjustment. The P33 suffix typically indicates the 3.3V supply voltage variant. The 2.0A suffix may denote specific performance grades or packaging details within the product line.

Oscillators Replacement Considerations

Direct substitutes must match the 13.000 MHz frequency, LVPECL output, and 6-SMD package. Compatible alternatives include other Mercury QVMQF series parts with identical electrical parameters. Cross-reference pinouts and thermal characteristics before substitution.
