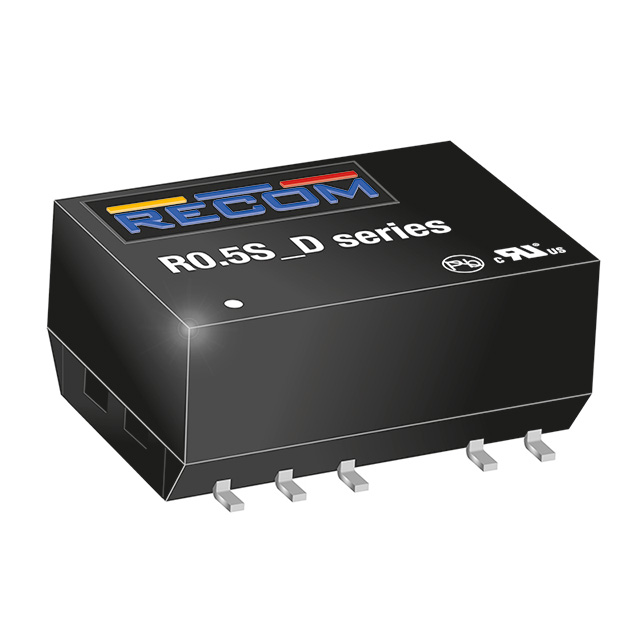

R0.5D10-2412-R

R0.5D10-2412-R is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER +/-12V 500MW. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for R0.5D10-2412-R

• Description：DC DC CONVERTER +/-12V 500MW
• Series：ECONOLINE R0.5D (0.5W)
• Mfr：Recom Power
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：21.6V
• Voltage - Input (Max)：26.4V
• Voltage - Output 1：12V
• Voltage - Output 2：-12V
• Voltage - Output 3：-
• Current - Output (Max)：21mA, 21mA
• Power (Watts)：500 mW
• Voltage - Isolation：1 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 100°C
• Efficiency：75%
• Mounting Type：Surface Mount
• Package / Case：10-SMD Module
• Size / Dimension：0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm)

DC DC Converters datasheet and documents for R0.5D10-2412-R
