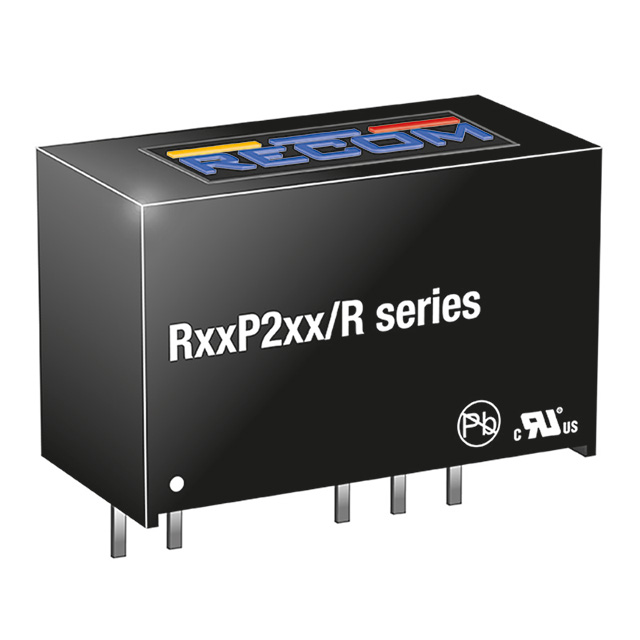

R05P212S/P/X2/R8

R05P212S/P/X2/R8 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER 12V 2W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for R05P212S/P/X2/R8

• Description：DC DC CONVERTER 12V 2W
• Series：ECONOLINE RxxP2xx/R (2W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：167mA
• Power (Watts)：2 W
• Voltage - Isolation：8 kV
• Applications：ITE (Commercial), Medical
• Features：SCP
• Operating Temperature：-40°C ~ 85°C
• Efficiency：87%
• Mounting Type：Through Hole
• Package / Case：7-SIP Module, 4 Leads
• Size / Dimension：0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for R05P212S/P/X2/R8
