R1100D241C-TR-F

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

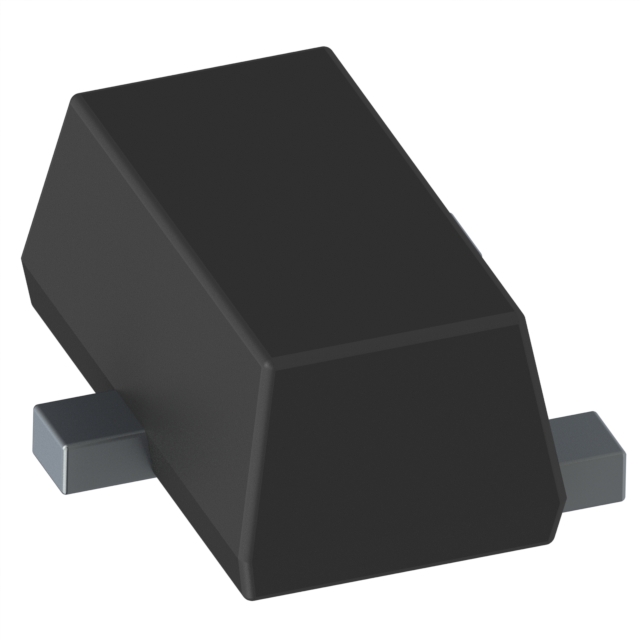

The R1100D241C-TR-F is a CMOS-based positive fixed linear voltage regulator from the R1100D series, manufactured by Nisshinbo Micro Devices Inc. It provides a fixed output voltage of 2.4V with an accuracy of ±2.0% and supports a maximum output current of 100mA. The device operates within an input voltage range up to 6.0V and features a typical supply current of 1.5μA. It utilizes a SON1408-3 package for high-density mounting and includes built-in fold-back protection circuitry.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

• Ultra-low supply current consumption for battery-powered applications
• High output voltage accuracy with low temperature-drift coefficient
• Built-in fold-back protection circuit against short circuits

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

• Power source for battery-powered equipment
• Precision voltage references
• Power source for hand-held communication equipment

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the specific part number R1100D241C-TR-F against official manufacturer documentation to confirm availability and specifications. Ensure compatibility with the required SON1408-3 package and operating temperature range before procurement. Cross-reference datasheet parameters such as dropout voltage and load regulation with system requirements.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when a fixed 2.4V output is required in a compact SON1408-3 footprint. Consider its ultra-low supply current for power-sensitive designs. Verify that the input voltage remains within the recommended operating conditions and that the load current does not exceed the 100mA limit.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This device belongs to the R1100D series of ultra-small package voltage regulators. The series is characterized by CMOS technology, offering high accuracy and low power consumption. The '24' in the model number indicates the fixed 2.4V output voltage setting.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Replacement Considerations

Consult the manufacturer's selection guide for alternative output voltages or packages within the R1100D series. Verify pinout and electrical characteristics before substituting with other LDO regulators.
