R1173D281D5-TR-FE

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

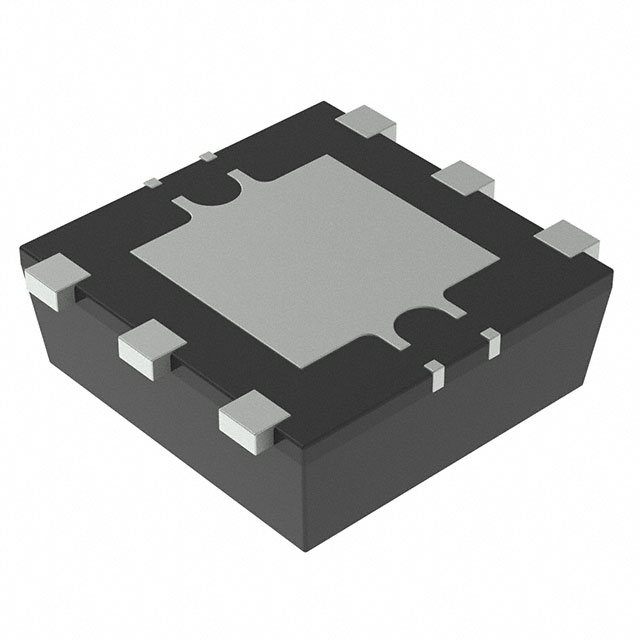

The R1173D281D5-TR-FE is a low-dropout (LDO) voltage regulator manufactured by Nisshinbo Micro Devices. It belongs to the R1173D series and provides a fixed output voltage of 2.8V. The device supports a maximum output current of 1A and utilizes an HSON-6 package for compact integration. It is classified under PMIC - Power Management ICs and is supplied in a reel packaging format with a standard factory quantity of 3000 units.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

• Provides stable regulated output voltage suitable for sensitive electronic circuits
• Capable of delivering high continuous current for power-hungry loads
• Utilizes a compact surface-mount package for efficient board space utilization

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

• General purpose power management in portable devices
• Voltage regulation for embedded systems requiring stable DC supply
• Power conditioning for peripheral components in consumer electronics

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the exact output voltage code within the part number against the official datasheet to ensure compatibility with system requirements. Confirm that the HSON-6 footprint matches the PCB layout design. Check RoHS compliance status if required by specific environmental regulations. Ensure ordering quantities align with the manufacturer's standard reel packaging specifications.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when a fixed 2.8V output at up to 1A is required in a small form factor. Consider the thermal performance characteristics inherent to the HSON-6 package for heat dissipation needs. Compare input-output voltage differentials to ensure operation within the specified dropout voltage range. Evaluate the need for external capacitors as defined in the application circuit guidelines.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This component is part of the R1173D series from Nisshinbo Micro Devices, which focuses on low-voltage, high-current LDO regulators. The series is designed for applications demanding reliable power delivery in compact spaces. The R1173D line typically offers various fixed output voltages to accommodate diverse digital and analog circuit requirements across multiple industries.
