R1180D261B-TR-FE

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

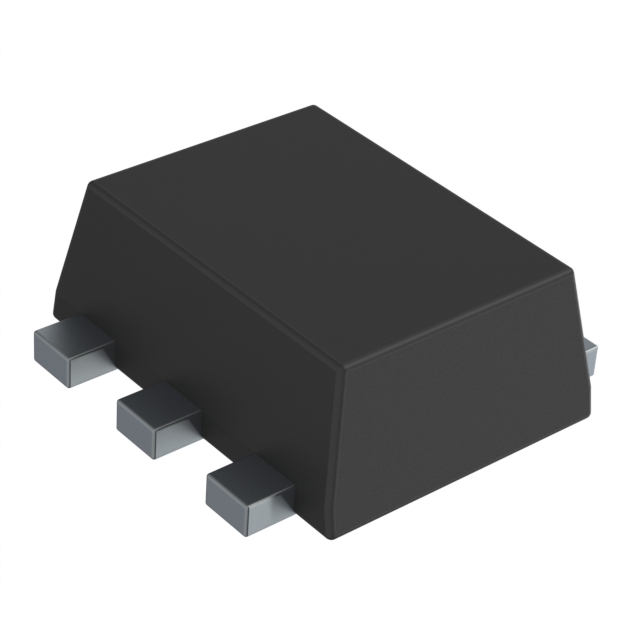

The R1180D261B-TR-FE is a CMOS-based low dropout regulator from the R1180x series, manufactured by Nisshinbo Micro Devices. It provides a fixed output voltage of 2.6 V with an accuracy of ±2.0%. The device supports a maximum output current of 150 mA and operates within an input voltage range of 1.7 V to 6.0 V. Key electrical characteristics include a typical supply current of 1 µA and a standby current of 0.1 µA when the Chip Enable pin is grounded. The IC features a built-in fold-back protection circuit limiting short-circuit current to approximately 40 mA. It utilizes a SON1612-6 package for surface mount applications.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

• Ultra-low power consumption with typical supply current of 1 µA and standby mode current of 0.1 µA via the Chip Enable pin.
• High output voltage accuracy of ±2.0% across the operating temperature range.
• Integrated fold-back protection circuit prevents device destruction during excess current or short-circuit conditions.
• Designed for high-density mounting using the compact SON1612-6 surface-mount package.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

• Stable voltage reference circuits
• Power sources for battery-powered equipment
• Power supplies for cameras, VCRs, and camcorders

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm the output voltage, package type, and CE pin configuration. Ensure that the ordering suffix matches the required specifications, as variations exist within the R1180x family. Cross-reference datasheet details for absolute maximum ratings and recommended operating conditions before integration into designs.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component for applications requiring low quiescent current and precise voltage regulation in space-constrained designs. The SON1612-6 package facilitates high-density board mounting. Consider the thermal dissipation capabilities based on the specific PCB layout and ambient temperature conditions. Verify compatibility with ceramic capacitors for phase compensation and stable operation under varying load currents.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This device belongs to the R1180x Series of 150mA LDO regulators. The 'D' in the model name indicates the SON1612-6 package variant. The '26' denotes the fixed 2.6 V output voltage setting. The 'B' suffix specifies the presence of a Chip Enable pin with active-high logic. This series is designed for portable electronic devices requiring efficient power management and long battery life.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Replacement Considerations

Other variants within the R1180x series may serve as alternatives if package or output voltage differences are acceptable. For example, R1180N or R1180Q series parts offer different packages but similar electrical characteristics. Ensure any substitute maintains the required output voltage, current capacity, and package footprint for direct replacement.
