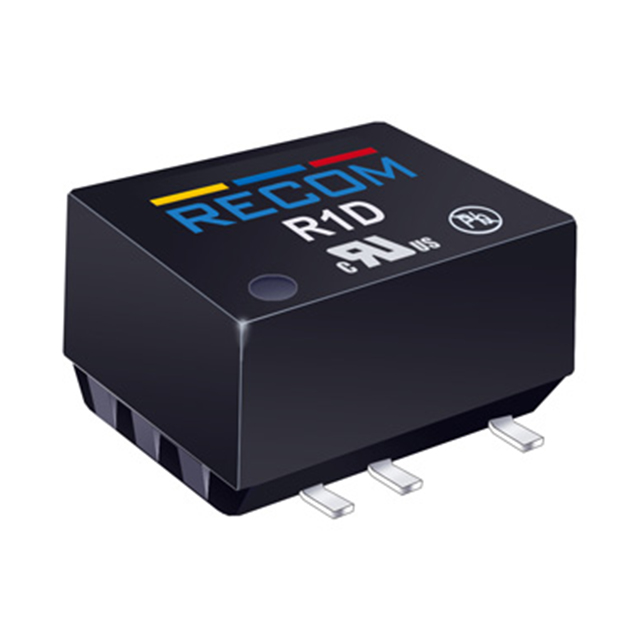

R1D-243.3/HP

R1D-243.3/HP is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER +/-3.3V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for R1D-243.3/HP

• Description：DC DC CONVERTER +/-3.3V 1W
• Series：ECONOLINE R1D (1W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：21.6V
• Voltage - Input (Max)：26.4V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-3.3V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：152mA, 152mA
• Power (Watts)：1 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial), Medical
• Features：SCP
• Operating Temperature：-40°C ~ 100°C
• Efficiency：75%
• Mounting Type：Surface Mount
• Package / Case：10-SMD Module, 6 Leads
• Size / Dimension：0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm)
• Control Features：-

DC DC Converters datasheet and documents for R1D-243.3/HP
