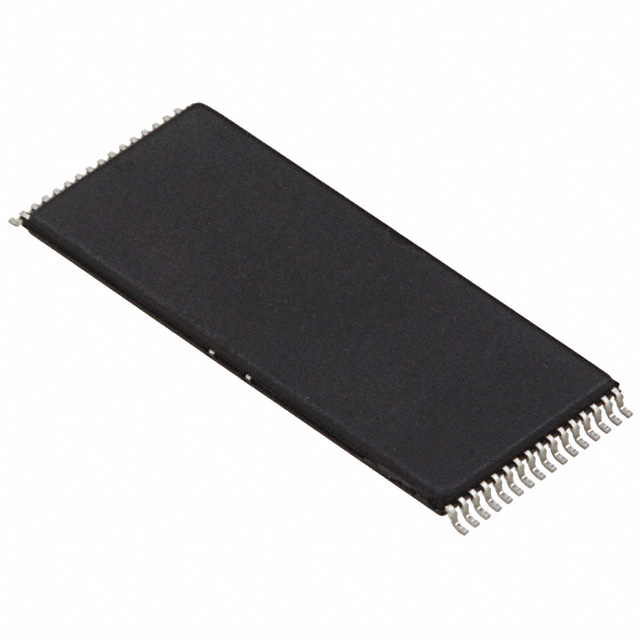

R1LP0108ESF-7SR#S0 is listed in the Memory IC range at ChipApex. The manufacturer field lists Renesas Electronics Corporation. Its product description is IC SRAM 1MBIT PARALLEL 32TSOP I. Review the specifications below when checking this part for your BOM.
Memory IC specifications for R1LP0108ESF-7SR#S0
- Description：IC SRAM 1MBIT PARALLEL 32TSOP I
- Series：-
- Mfr：Renesas Electronics Corporation
- Package：Tape & Reel (TR)
- Memory Type：Volatile
- Memory Format：SRAM
- Technology：SRAM
- Memory Size：1Mbit
- Memory Organization：128K x 8
- Memory Interface：Parallel
- Clock Frequency：-
- Write Cycle Time - Word, Page：70ns
- Voltage - Supply：4.5V ~ 5.5V
- Operating Temperature：0°C ~ 70°C (TA)
- Mounting Type：Surface Mount
- Package / Case：32-TFSOP (0.724", 18.40mm Width)
- Supplier Device Package：32-TSOP I
- Access Time：70 ns
- Grade：-
- Qualification：-
Memory IC datasheet and documents for R1LP0108ESF-7SR#S0
Memory IC Overview
The R1LP0108ESF-7SR#S0 is a 1Mbit (128K x 8) parallel SRAM manufactured by Renesas Electronics Corporation. It features a 70 ns access time and operates within a supply voltage range of 4.5V to 5.5V. The device is housed in a 32-TSOP I package with dimensions of 0.724 inches (18.40mm) width. It supports surface mount installation and functions within an operating temperature range of 0°C to 70°C.
Memory IC Feature Summary
- Provides non-volatile data storage capabilities using static random-access memory technology for rapid read/write operations.
- Utilizes a parallel interface architecture to facilitate high-speed data transfer between the memory controller and external systems.
- Designed for industrial-grade reliability with specified operational limits covering standard commercial temperature environments.
Memory IC Applications
- Data buffering in embedded control systems
- Cache memory implementation in microprocessor units
- Temporary storage in industrial automation controllers
Memory IC Procurement Notes
Verify the specific suffix #S0 against the manufacturer's official datasheet to confirm pinout compatibility and electrical characteristics. Ensure that the 32-TSOP I package dimensions align with your PCB footprint requirements. Confirm that the 0°C to 70°C operating temperature range meets your system's environmental specifications before finalizing procurement orders.
Memory IC Selection Notes
Select this component when a 1Mbit capacity with 70 ns speed is required for parallel SRAM applications. Consider the 32-TSOP I package size for board space constraints. Verify that the 4.5V to 5.5V supply voltage matches your system's power rails. Ensure the commercial temperature range is sufficient for the intended deployment environment.
Memory IC Part Context
This part belongs to the R1LP0108 series of 1Mbit parallel SRAMs from Renesas. The series offers various speed grades and packaging options to suit different design needs. The R1LP0108ESF-7SR#S0 specifically denotes the 70 ns speed grade in the TSOP I package format, providing a standardized solution for memory expansion in electronic devices.
Memory IC Replacement Considerations
Check for direct cross-references from other manufacturers offering identical 128K x 8 organization, 70 ns access time, and 32-TSOP I packaging. Verify pin-to-pin compatibility and voltage tolerance levels before substitution. Consult official replacement guides for any functional differences in control signals or power management features.
