R1RP0408DGE-2LR#B1

Memory IC Overview

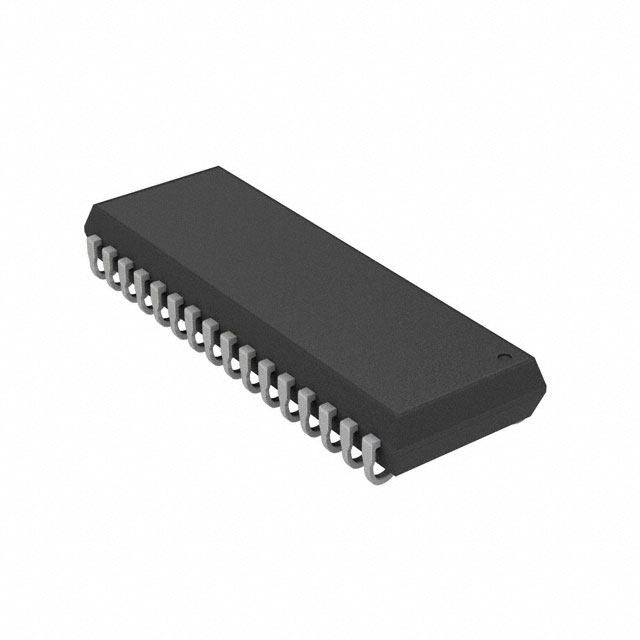

The R1RP0408DGE-2LR#B1 is a 4 Mbit Static Random Access Memory (SRAM) manufactured by Renesas Electronics. It features a memory organization of 512 k x 8 bits and operates with a maximum access time of 12 ns. The device supports a supply voltage range from 4.5 V to 5.5 V, with a maximum power supply current of 130 mA. It is housed in a 36-pin SOJ package designed for surface mount installation. The component functions within an operating temperature range of 0°C to +70°C.

Memory IC Feature Summary

• Provides high-speed parallel data access with a 12 ns access time for efficient system performance.
• Utilizes a 36-pin Small Outline J-Lead (SOJ) package suitable for surface-mount technology applications.
• Operates on a standard 5V power supply with a defined voltage tolerance range.

Memory IC Applications

• Data buffering in embedded systems
• Cache memory implementation in microcontroller-based designs
• Industrial control system data storage

Memory IC Procurement Notes

Verify the End-of-Life status before procurement, as discontinuation notices indicate potential obsolescence. Confirm RoHS compliance details through official documentation. Ensure compatibility with existing board layouts due to the specific SOJ-36 package dimensions. Check for moisture sensitivity handling requirements during storage and assembly processes.

Memory IC Selection Notes

Select this component when a 512k x 8 SRAM configuration with 12 ns speed is required. Consider the SOJ-36 package constraints for PCB design. Evaluate the 0°C to +70°C commercial temperature range against environmental conditions. Compare power consumption specifications with alternative memory solutions if efficiency is critical.

Memory IC Part Context

This part belongs to the Renesas R1RP series of static random access memories. The series offers various densities and interface options for general-purpose memory applications. The R1RP0408 variant specifically addresses 4 Mbit capacity needs with 8-bit word width. Renesas provides these components for use in consumer, industrial, and automotive electronics requiring reliable volatile memory storage.

Memory IC Replacement Considerations

Direct substitutes are not explicitly confirmed in available public documentation. Verify pinout and electrical compatibility with any proposed alternatives. Ensure replacement parts match the 36-pin SOJ form factor or require adapter solutions.
