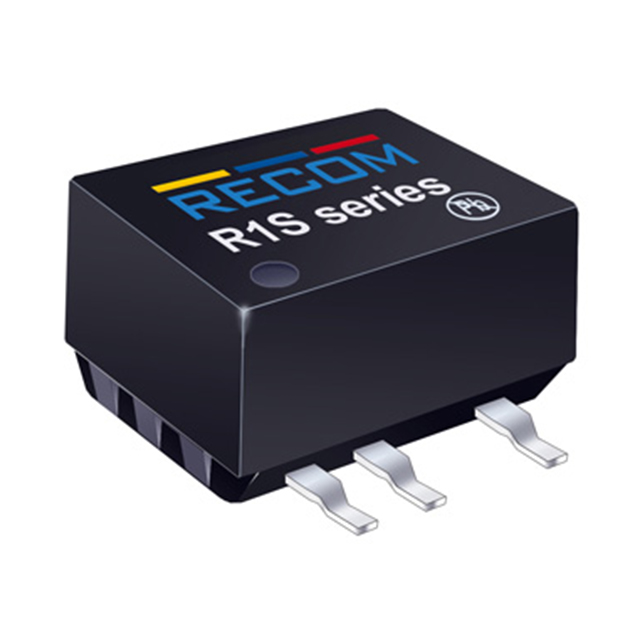

R1S-3.305/P

R1S-3.305/P is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER 5V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for R1S-3.305/P

• Description：DC DC CONVERTER 5V 1W
• Series：ECONOLINE R1S (1W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：3V
• Voltage - Input (Max)：3.6V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：200mA
• Power (Watts)：1 W
• Voltage - Isolation：1 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 100°C
• Efficiency：78%
• Mounting Type：Surface Mount
• Package / Case：8-SMD Module, 5 Leads
• Size / Dimension：0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm)
• Supplier Device Package：-
• Control Features：-

DC DC Converters datasheet and documents for R1S-3.305/P
