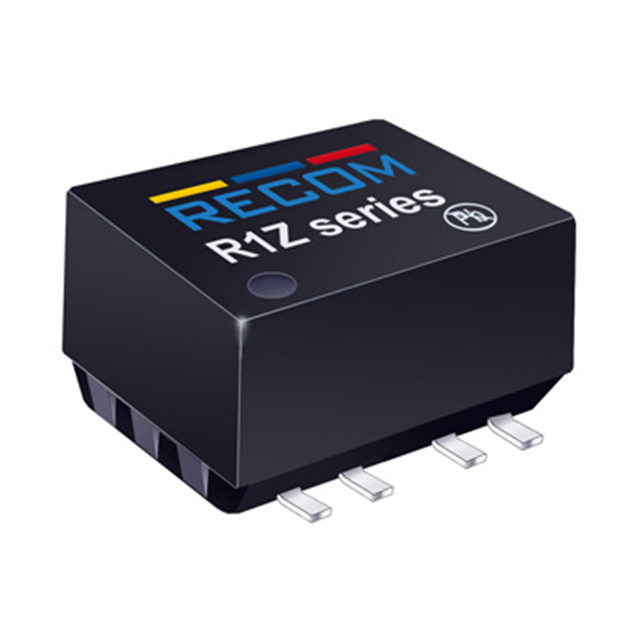

R1Z-2415-R

R1Z-2415-R is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER 15V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for R1Z-2415-R

• Description：DC DC CONVERTER 15V 1W
• Series：ECONOLINE R1Z (1W)
• Mfr：Recom Power
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：22.8V
• Voltage - Input (Max)：25.2V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：66mA
• Power (Watts)：1 W
• Voltage - Isolation：1 kV
• Applications：ITE (Commercial), Medical
• Features：-
• Operating Temperature：-40°C ~ 70°C
• Efficiency：60%
• Mounting Type：Surface Mount
• Package / Case：10-SMD Module, 6 Leads
• Size / Dimension：0.60" L x 0.42" W x 0.35" H (15.2mm x 10.7mm x 9.0mm)
• Supplier Device Package：-
• Approval Agency：-

DC DC Converters datasheet and documents for R1Z-2415-R
