R3118K201C-TR

Supervisors Overview

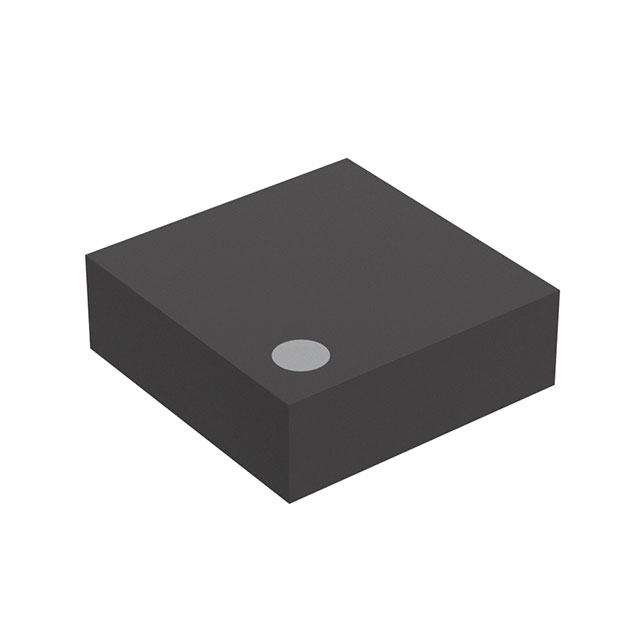

The R3118K201C-TR is a low voltage detector manufactured by Nisshinbo Micro Devices, designed for monitoring single-input supply voltages. It operates within a power supply range of 1 V to 6 V and features a threshold voltage of 2 V with an accuracy of 1.5%. The device utilizes a CMOS output type and includes a reset delay time of 100 ms. It supports battery backup switching and offers power failure detection capabilities without manual reset or watchdog timer functions. The component consumes 480 nA of operating current and dissipates up to 400 mW of power. It is available in a DFN-PLP-1212-6 package and functions reliably across temperatures from -40°C to +85°C.

Supervisors Feature Summary

• Integrates a dedicated SENSE pin to enable direct monitoring of battery voltage levels.
• Provides configurable output delay functionality through external capacitor connection.
• Supports battery backup switching to maintain system state during power transitions.

Supervisors Applications

• Battery-powered portable electronic devices requiring low voltage supervision
• Mobile communication equipment monitoring main supply rails
• Embedded systems utilizing backup power switching mechanisms

Supervisors Procurement Notes

Verify the specific suffix codes against official datasheets to confirm package type and electrical characteristics. Ensure compatibility with required operating temperature ranges and output configurations before integration. Cross-reference manufacturer part numbers to avoid substitution errors.

Supervisors Selection Notes

Select this component when a 2 V threshold is required for single-supply monitoring within a 6 V maximum limit. Consider the DFN-PLP-1212-6 package for space-constrained designs. Verify that the 100 ms delay and CMOS output align with downstream logic requirements.

Supervisors Part Context

This part belongs to the R3118K series of low voltage detectors featuring SENSE pins and output delay capabilities. It is categorized under supervisory circuits within the PMIC segment. The series is designed for applications requiring precise voltage monitoring with minimal quiescent current consumption.

Supervisors Replacement Considerations

Consult official substitution lists for compatible parts within the R3118K family or equivalent Nisshinbo voltage detectors. Verify pinout and electrical parameter alignment before replacing.
