Product Detailed Parameters

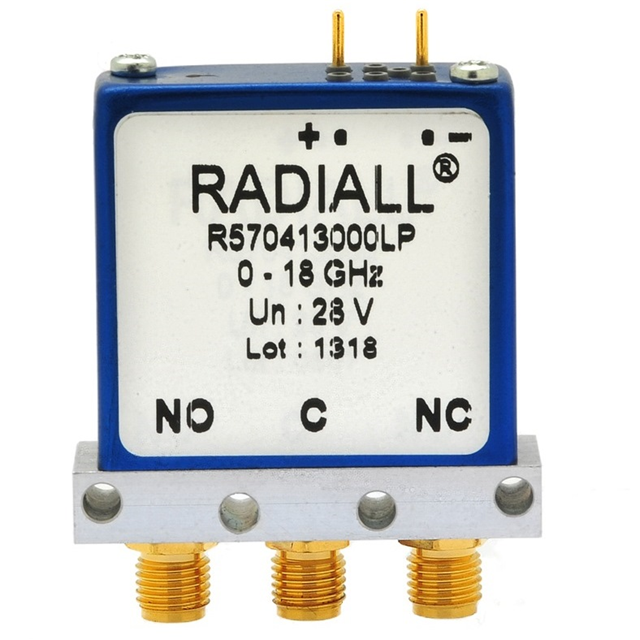

- Description：IC RF SWITCH SPDT 18GHZ MODULE
- Series：-
- Mfr：Radiall USA, Inc.
- Package：Bulk
- Product Status：Active
- RF Type：General Purpose
- Topology：-
- Circuit：SPDT
- Frequency Range：0Hz ~ 18GHz
- Isolation：60dB (min)
- Insertion Loss：0.35dB (max)
- Test Frequency：18GHz
- Impedance：50Ohm
- Voltage - Supply：10.2V ~ 13V
- Operating Temperature：-25°C ~ 70°C
- Mounting Type：-
- Package / Case：Module, SMA Connectors
- P1dB：-
- IIP3：-
- Features：-
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview
The Radiall R570412000LP is a coaxial switch module designed for high-frequency signal routing applications. It features a compact form factor suitable for integration into test and measurement equipment or communication systems requiring reliable RF switching capabilities. The component operates within specified frequency ranges, ensuring minimal insertion loss and high isolation between ports. Constructed with durable materials, it supports repeated switching cycles while maintaining signal integrity in demanding environments.
Feature Summary
- Compact modular design for space-constrained installations
- High isolation performance between switched channels
- Robust construction for extended operational lifespan
Applications
- Test and measurement instrumentation
- Telecommunications infrastructure
- Aerospace and defense radar systems
Procurement Notes
Verify part number accuracy against official Radiall documentation before procurement. Confirm environmental specifications such as temperature range and humidity resistance match application requirements. Ensure compatibility with existing control interfaces and mounting hardware. Request detailed datasheets and certification documents from authorized distributors to validate authenticity and traceability.
Selection Notes
Evaluate frequency range and power handling capabilities against system requirements. Consider mechanical dimensions and mounting options for integration feasibility. Assess switching speed and lifetime cycle ratings for long-term reliability needs. Compare alternative models within the Radiall portfolio if specific performance thresholds are not met by this variant.
Part Context
This component belongs to Radiall’s series of RF switching solutions, engineered for precision signal management in critical electronic systems. It complements other passive components like attenuators and couplers within broader RF subsystems. Designed for consistent performance across diverse industrial and commercial sectors, it aligns with industry standards for coaxial connectivity and signal routing efficiency.
