R573493605LP

$1,553.83

Description：IC RF SWITCH SP6T 18GHZ
Series：SPnT
Mfr：Radiall USA, Inc.
Package：Bulk

SKU:d723fa180fac Category: RF Switches Brand: Radiall USA, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC RF SWITCH SP6T 18GHZ
Series：SPnT
Mfr：Radiall USA, Inc.
Package：Bulk
Product Status：Active
RF Type：General Purpose
Topology：-
Circuit：SP6T
Frequency Range：0Hz ~ 18GHz
Isolation：-
Insertion Loss：-
Test Frequency：-
Impedance：-
Voltage - Supply：28V
Operating Temperature：-
Mounting Type：-
Package / Case：Module, SMA Connectors
P1dB：-
IIP3：-
Features：-
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

R573493605LP

Overview

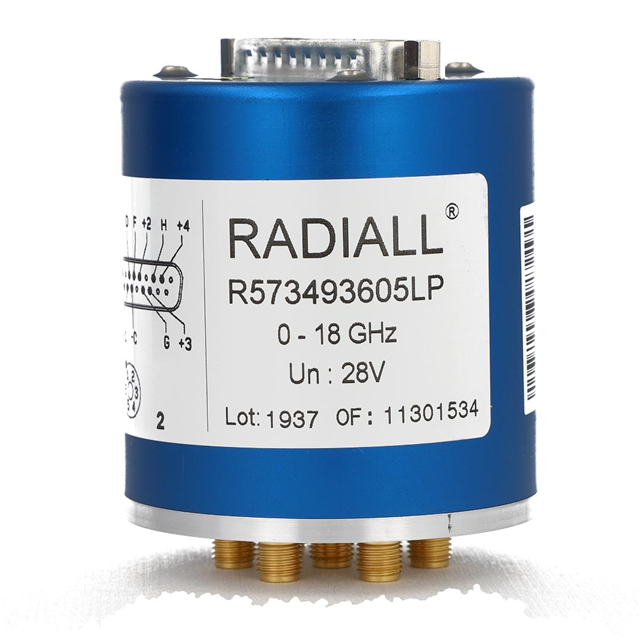

The R573493605LP is a SP6T coaxial switch from the Ramses series by Radiall. It features an SMA interface and operates up to 18 GHz. The device is latching with self-cut-off and auto-reset capabilities, including indicators. It utilizes a D-sub connector and requires 28Vdc for operation. The unit is non-illuminated and packaged in bulk.

Feature Summary

SP6T switching configuration within the Ramses series
Latching mechanism with self-cut-off and auto-reset functions
Integrated status indicators for operational monitoring

Applications

RF signal routing in communication systems
Test and measurement equipment setups
Aerospace and defense radar applications

Procurement Notes

Verify current availability directly with Radiall USA, Inc., as distribution channels may indicate limited or no stock. Confirm manufacturing lifecycle status and lead times through official manufacturer channels prior to procurement planning. Ensure compatibility with required voltage specifications and connector types.

Selection Notes

Select this component for high-frequency applications requiring reliable signal path management. The latching feature ensures state retention without continuous power. Verify that the SMA interface and D-sub connector align with system integration requirements. Consider the 18 GHz frequency limit for bandwidth needs.

Part Context

This part belongs to the Ramses series of coaxial switches, designed for robust performance in demanding environments. The Ramses line typically offers high isolation and low insertion loss characteristics suitable for critical RF infrastructure.

Replacement Considerations

Consult Radiall official documentation for verified substitute part numbers. Cross-reference technical specifications such as frequency range, interface type, and control voltage before considering alternatives.
