Product Detailed Parameters
- Description：IC RF SWITCH SP6T 26.5GHZ
- Series：SPnT
- Mfr：Radiall USA, Inc.
- Package：Bulk
- Product Status：Active
- RF Type：General Purpose
- Topology：-
- Circuit：SP6T
- Frequency Range：0Hz ~ 26.5GHz
- Isolation：50dB (min)
- Insertion Loss：0.7dB (max)
- Test Frequency：26.5GHz
- Impedance：50Ohm
- Voltage - Supply：24V ~ 30V
- Operating Temperature：-40°C ~ 85°C
- Mounting Type：-
- Package / Case：Module, SMA Connectors
- P1dB：-
- IIP3：-
- Features：-
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

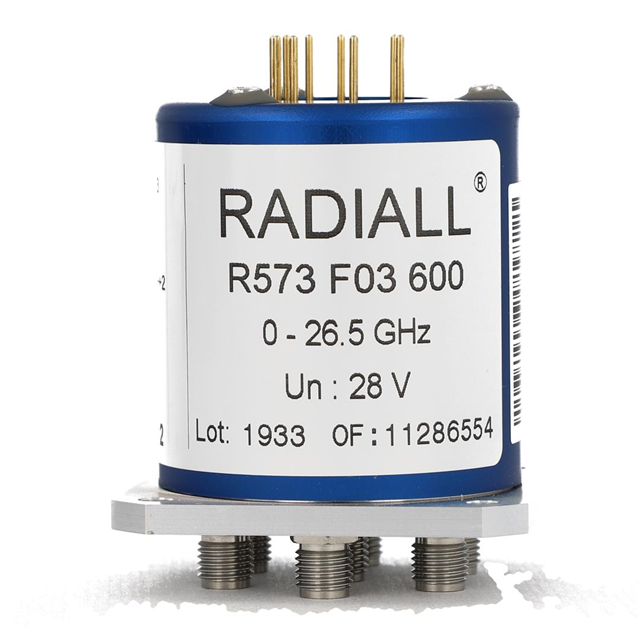

The R573F23600 is a single-pole six-throw (SP6T) RF switch IC from the RAMSES series, manufactured by Radiall. It features SMA connectors and utilizes a latching mechanism powered by 28Vdc. The component operates within a frequency range of 0Hz to 26.5GHz. It is designed for screw mount installation with pin terminals. The device supports a wide operating temperature range from -40°C to +85°C.
Feature Summary
- SP6T configuration for signal routing
- Latching control mechanism
- SMA connector interface
- Wideband DC to 26.5GHz operation
Applications
- Test and measurement equipment
- Telecommunications infrastructure
- Electronic warfare systems
- Radar systems
Procurement Notes
Verify current availability status directly with Radiall or authorized distributors, as supply conditions may vary. Confirm that the 28Vdc latching voltage requirement aligns with your system design. Ensure mechanical compatibility with screw mount mounting styles and SMA connector interfaces before procurement.
Selection Notes
Select this component when high-frequency switching up to 26.5GHz is required in an SP6T topology. The latching feature eliminates continuous power consumption for state retention. Verify that the 28Vdc control voltage is compatible with your drive circuitry. Consider the physical dimensions and screw mount requirements for integration into your enclosure design.
Part Context
This part belongs to the RAMSES series of RF switches, which are known for high performance in demanding applications. The R573F23600 specifically offers SP6T functionality with SMA connectors. It complements other variants in the series that may differ in throw count or connector types, providing a robust solution for complex signal routing needs.
Replacement Considerations
Check for direct substitutes within the RAMSES series such as R573F22600, noting differences in control voltage or specific connector configurations. Ensure any replacement maintains the SP6T configuration and 26.5GHz frequency range. Verify mechanical and electrical compatibility before substitution.
