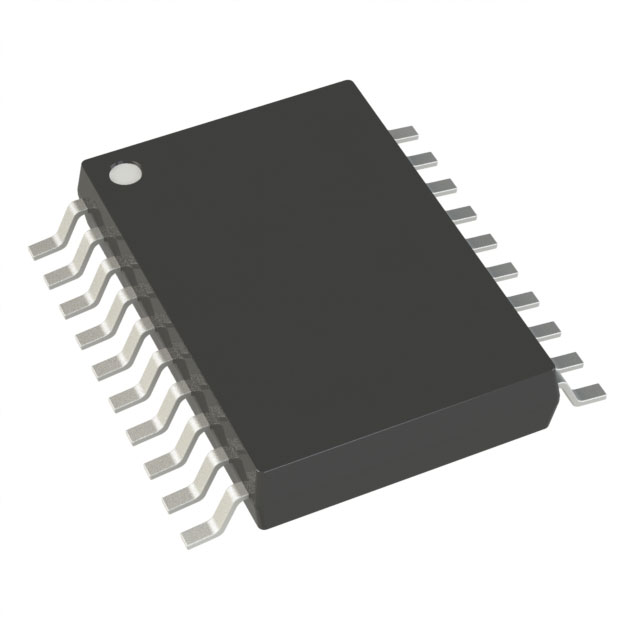

R5F1006DASP#70

Microcontrollers Overview

The R5F1006DASP#70 is a 16-bit microcontroller belonging to the RL78/G13 family, manufactured by Renesas Electronics. It features an integrated Flash program memory of 32 kB and SRAM data memory of 2 kB. The device operates within a supply voltage range of 1.6 V to 5.5 V and supports a maximum clock frequency of 32 MHz. It utilizes a 20-pin LSSOP package and is rated for an industrial operating temperature range from -40°C to +85°C.

Microcontrollers Feature Summary

• Integrates RL78 core architecture with 16-bit general-purpose processing capabilities
• Includes on-chip Flash memory for non-volatile program storage
• Supports multiple serial communication interfaces including CSI, I2C, LIN, and UART
• Features built-in analog-to-digital conversion channels

Microcontrollers Applications

• General-purpose embedded control systems
• Industrial instrumentation requiring robust serial communication
• Consumer electronics utilizing low-voltage operation
• Automotive body electronics applications

Microcontrollers Procurement Notes

Verify the specific suffix #70 against official Renesas documentation to confirm packaging configuration. Ensure compatibility with required environmental ratings and interface selections before procurement. Cross-reference datasheet revisions to validate pinout and electrical characteristics.

Microcontrollers Selection Notes

Select this component when a compact 20-pin form factor is required alongside standard serial interfaces like LIN or UART. Evaluate memory requirements against the 32 kB Flash and 2 kB SRAM limits. Confirm that the 32 MHz processing speed meets real-time control demands for the target application.

Microcontrollers Part Context

This part belongs to the RL78/G13 series, designed for cost-sensitive and space-constrained applications. The series emphasizes low power consumption and high integration levels within small packages. It serves as a solution for replacing legacy 8-bit microcontrollers in modern embedded designs.

Microcontrollers Replacement Considerations

Consult official Renesas substitution guides for verified compatible parts. Verify pin-to-pin compatibility and memory size equivalence before considering alternative models.
