R5F100CEGLA#W0

Microcontrollers Overview

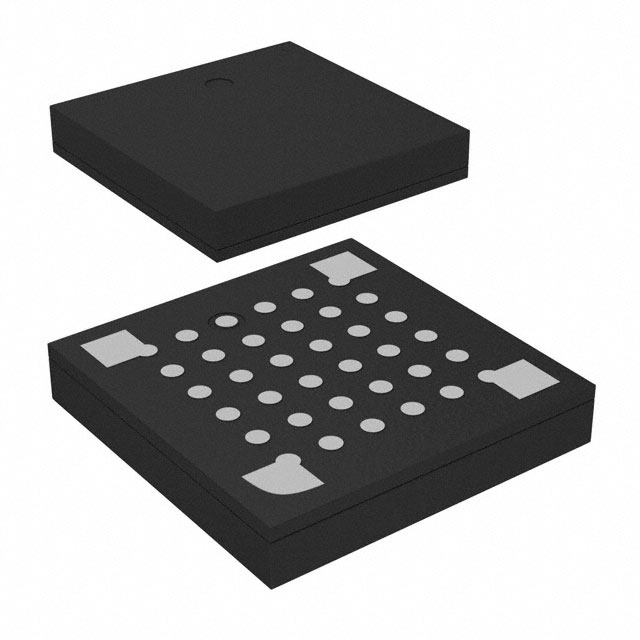

The R5F100CEGLA#W0 is a 16-bit microcontroller from the Renesas RL78/G13 series. It features a 32 MHz CPU core, 64 KB of FLASH program memory, 4 KB of RAM, and 4 KB of EEPROM. The device provides 26 I/O pins and supports an operating voltage range of 1.6 V to 5.5 V. It includes an 8-bit/10-bit ADC with 12 channels, CSI, I2C, LINbus, and UART interfaces. The component operates within a temperature range of -40°C to +105°C and is housed in a 36-WFLGA (4x4) package.

Microcontrollers Feature Summary

• Integrates a 16-bit RL78 core for efficient processing
• Supports multiple communication protocols including CSI, I2C, LINbus, and UART
• Includes built-in analog-to-digital conversion capabilities
• Features low-voltage detection and power-on reset peripherals

Microcontrollers Applications

• General-purpose embedded control systems
• Automotive body electronics applications
• Industrial monitoring devices
• Consumer appliance controllers

Microcontrollers Procurement Notes

Verify the specific suffix #W0 against official Renesas documentation to confirm package type and temperature grade. Ensure compatibility with design-in requirements before procurement. Check current availability status as supply conditions may vary. Confirm RoHS compliance details directly with the manufacturer or authorized distributors.

Microcontrollers Selection Notes

Select this model when a 16-bit architecture with moderate memory capacity is required. Consider the 36-pin WFLGA package for space-constrained designs. Evaluate the 1.6 V minimum supply voltage for battery-operated applications. Compare I/O count and peripheral sets against alternative RL78/G13 variants for optimal fit.

Microcontrollers Part Context

This component belongs to the RL78/G13 family of 16-bit microcontrollers designed by Renesas Electronics. The series targets general MCU applications requiring a balance of performance and peripheral integration. The R5F100CEGLA#W0 variant specifically offers 64 KB of flash memory and a compact 36-pin form factor suitable for dense PCB layouts.

Microcontrollers Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult official Renesas cross-reference tools for potential alternatives.
