R5F100GEANA#U0

Microcontrollers Overview

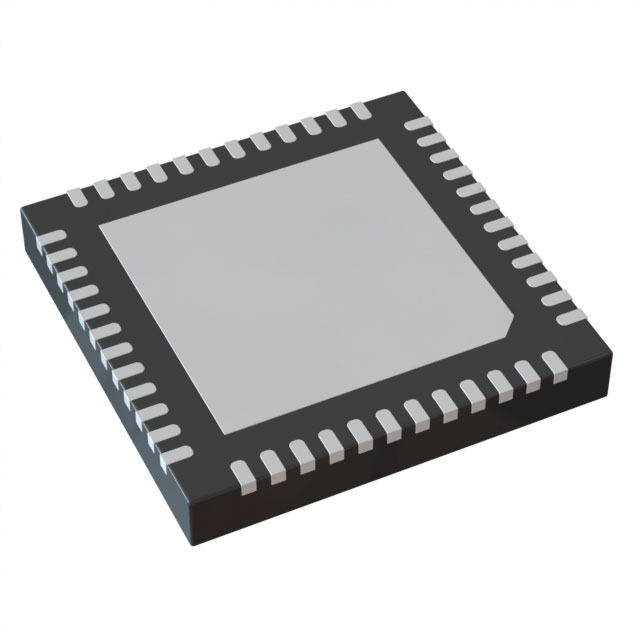

The R5F100GEANA#U0 is a 16-bit microcontroller from the Renesas RL78/G13 series, featuring a 32 MHz CPU clock speed. It integrates 64 kB of flash program memory and operates within a voltage range of 1.6 V to 5.5 V. The device is housed in a 48-pin HWQFN package with dimensions of 6 x 6 x 0.75 mm. Key peripherals include an 8-channel 8/10-bit ADC, four CSI channels, one LIN channel, five I2C channels, and three UART channels. It supports eight 16-bit timers and includes data flash for non-volatile storage.

Microcontrollers Feature Summary

• Combines high performance with ultra-low power consumption capabilities
• Integrates rich analog functions including high-precision internal oscillators
• Supports efficient code execution via multiply/divide instructions
• Includes hardware peripherals such as DMA and event link controllers

Microcontrollers Applications

• General-purpose embedded control systems
• Low-power consumer electronics
• Industrial monitoring devices
• Smart home appliances

Microcontrollers Procurement Notes

Verify the specific suffix #U0 against official Renesas documentation to confirm package type and tape/reel specifications. Ensure compatibility with RoHS standards and check for any recent product change notifications regarding manufacturing sites or material composition updates before finalizing procurement.

Microcontrollers Selection Notes

Select this component when a balance of moderate memory capacity and extensive communication interfaces is required. The RL78/G13 architecture offers a cost-effective solution for applications needing multiple serial ports and analog inputs without the complexity of higher-end processors. Consider the 48-pin form factor for space-constrained designs requiring significant I/O density.

Microcontrollers Part Context

This part belongs to the RL78/G13 family, which merges features from the legacy 78K and R8C series. The family is designed for compact, energy-efficient systems using a 16-bit CISC architecture. It targets applications demanding low power usage while maintaining sufficient processing power for complex control tasks.

Microcontrollers Replacement Considerations

Check for direct pin-compatible upgrades within the RL78/G13 series offering larger memory sizes, such as the R5F100GGANA#U0. Verify that peripheral configurations remain identical to ensure software compatibility during substitution.
