R5F1017CANA#40

Microcontrollers Overview

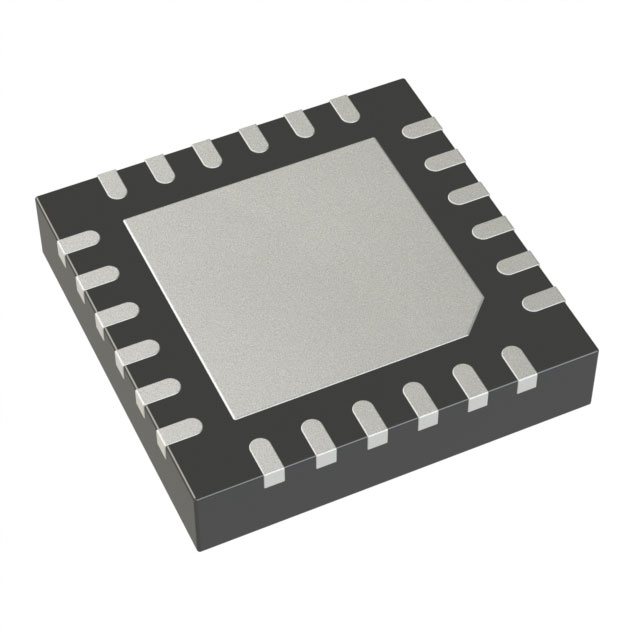

The R5F1017CANA#40 is a 16-bit microcontroller from the Renesas RL78/G13 series. It features a 32 kB Flash program memory and 2 kB SRAM data RAM. The device operates with a maximum clock frequency of 32 MHz and supports a supply voltage range of 1.6 V to 5.5 V. It includes an 8-bit or 10-bit ADC with 6 channels, 20 I/O pins, and interfaces such as I2C and UART. The component is housed in a HWQFN-24 package and functions within a temperature range of -40°C to +85°C.

Microcontrollers Feature Summary

• Integrates a 16-bit RL78 core for efficient processing
• Supports low-voltage operation down to 1.6 V
• Includes multiple communication interfaces including I2C and UART

Microcontrollers Applications

• General-purpose embedded control systems
• Low-power consumer electronics
• Industrial monitoring devices

Microcontrollers Procurement Notes

Verify the specific suffix #40 against official Renesas documentation to confirm packaging details, as suffixes often denote tape-and-reel configurations versus trays. Confirm current lifecycle status, as availability may vary by region. Ensure compliance with RoHS requirements relevant to your target market before finalizing procurement plans.

Microcontrollers Selection Notes

Select this model when a balance of moderate code capacity and low power consumption is required. The 32 kB Flash size suits applications needing more logic than smaller variants but less than high-end models. Verify that the 20 available I/O pins meet system interface requirements and that the HWQFN-24 package fits the PCB layout constraints.

Microcontrollers Part Context

This component belongs to the RL78/G13 family, designed for general-purpose 16-bit microcontroller applications. It shares architectural similarities with other members like the R5F1017EANA#20 but differs in memory size and package type. The G13 series emphasizes energy efficiency and integrated peripherals for cost-sensitive designs.

Microcontrollers Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult Renesas official resources for cross-reference information.
