R5F104JDGFA#V0

Microcontrollers Overview

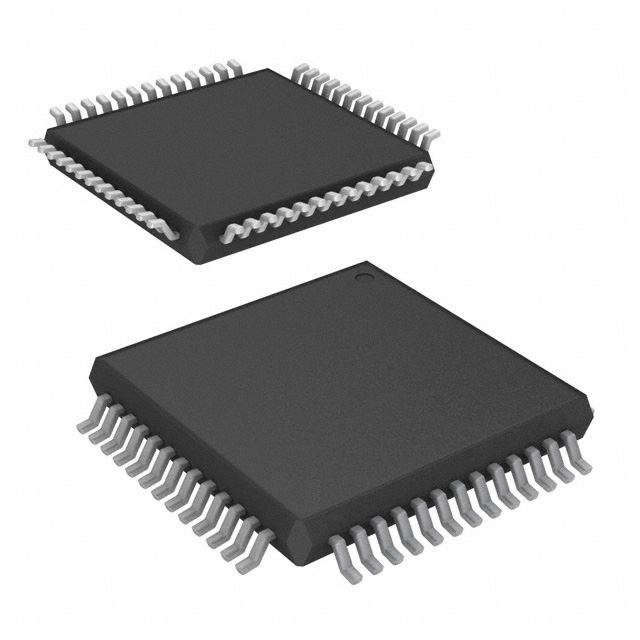

The R5F104JDGFA#V0 is a 16-bit microcontroller from the RL78/G14 family, featuring a 256 KB code flash memory and 24 KB RAM. It operates within a voltage range of 1.6 V to 5.5 V and supports a maximum clock frequency of 32 MHz. The device utilizes a 52-pin LQFP package and is rated for an industrial operating temperature range of -40°C to +105°C.

Microcontrollers Feature Summary

• Ultra-low power consumption technology with multiple low-power modes
• RL78 CPU core with CISC architecture and on-chip debug function
• Data flash memory supporting background operation during rewriting
• Integrated high-speed on-chip oscillator with high accuracy

Microcontrollers Applications

• Industrial control systems
• Consumer electronics
• General-purpose MCU applications

Microcontrollers Procurement Notes

Verify the specific ordering suffix #V0 against official Renesas documentation to confirm packaging specifications. Ensure compatibility with the required industrial temperature range and interface configurations before procurement.

Microcontrollers Selection Notes

Select this component for applications requiring robust industrial performance with extended temperature tolerance. Consider the available I/O count and peripheral interfaces relative to system requirements.

Microcontrollers Part Context

This part belongs to the RL78/G14 series, designed for general-purpose use with a focus on low power consumption. It integrates various peripherals including ADC, DAC, and serial interfaces suitable for diverse embedded applications.

Microcontrollers Replacement Considerations

Consult official Renesas documentation for verified substitute part numbers within the RL78/G14 family that match the required memory size, package type, and temperature rating.
